Schlage Commercial B663P-626-12-631-10-064 B663P Classroom Deadbolt

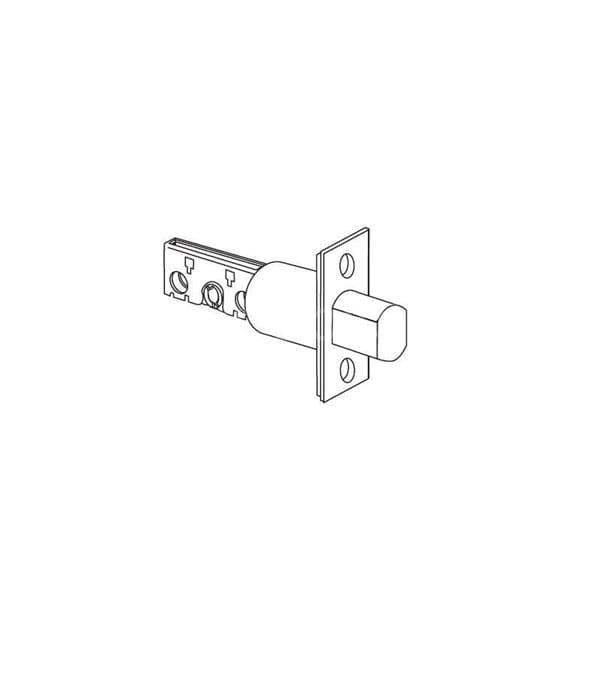

Classroom Deadbolt Lock, 6-Pin Cylinder,”C” Keyway, 2-3/4″ Backset Square Corner Bolt, 1-3/16″ Circular Drive-In Strike. 626 Satin Chrome
Specifications
- Backset: 2-3/4 Inch
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 626/US26D-Satin Chrome
- Finish Description: Satin Chrome

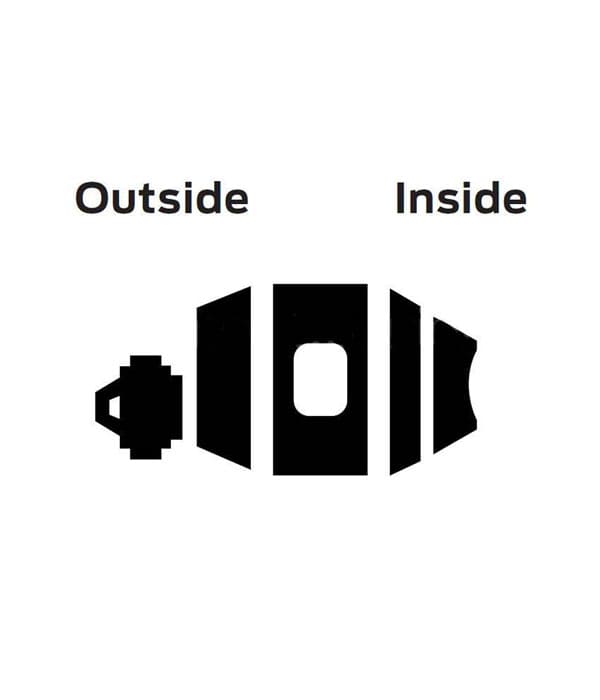

- Function: 63-Classroom Deadbolt
- Grade: ANSI/BHMA Grade 1
- Keyblank Grouping: SCHL-C-6-1
- Keying Charges: CCAM
- Keyway: Schlage C
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: B600 Series

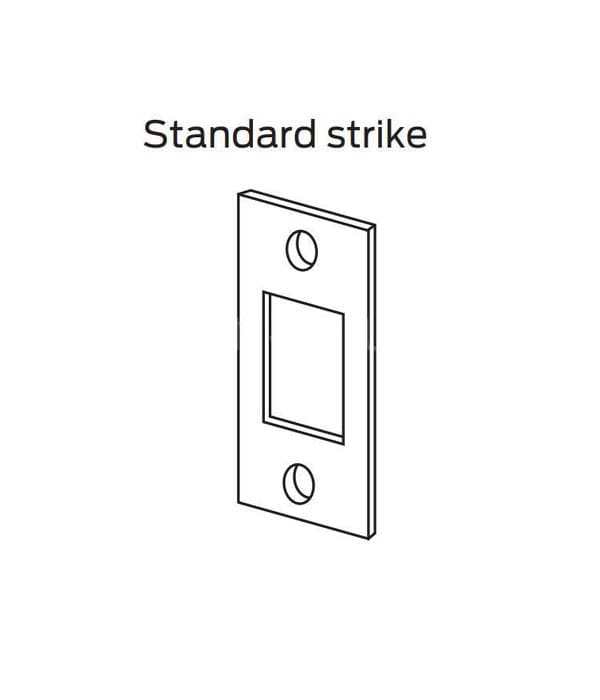

- Strike: Circular, Drive-In, Thimble Strike
Certifications
- ANSI:
B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements. - UL / cUL:
UL 10B and UL 10C listing optional for B500 Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
