Schlage Commercial B664P-605 B664P Cylinder Lock

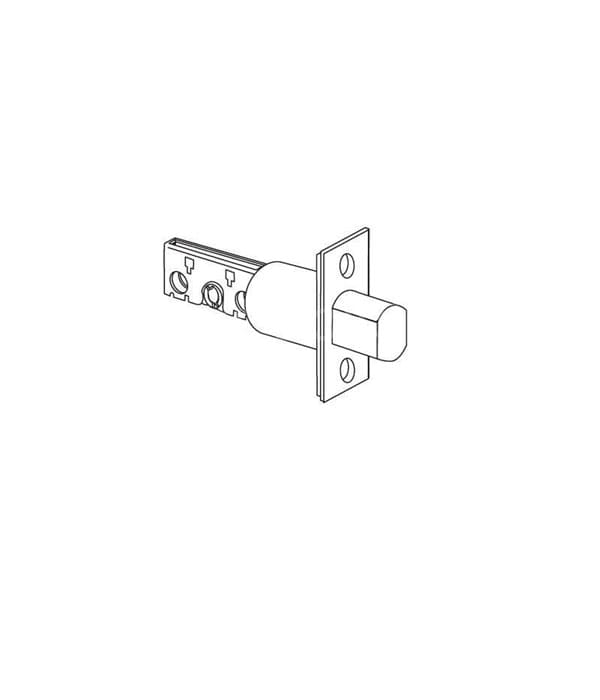

Cylinder Lock, 6-Pin Cylinder,”C” Keyway, 2-3/4″ Backset Square Corner Bolt, 2-3/4″ Strike Square Corner. 605 Bright Brass
Specifications
- Backset: 2-3/4 Inch
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 605/US3-Bright Polished Brass
- Finish Description: Bright Polished Brass

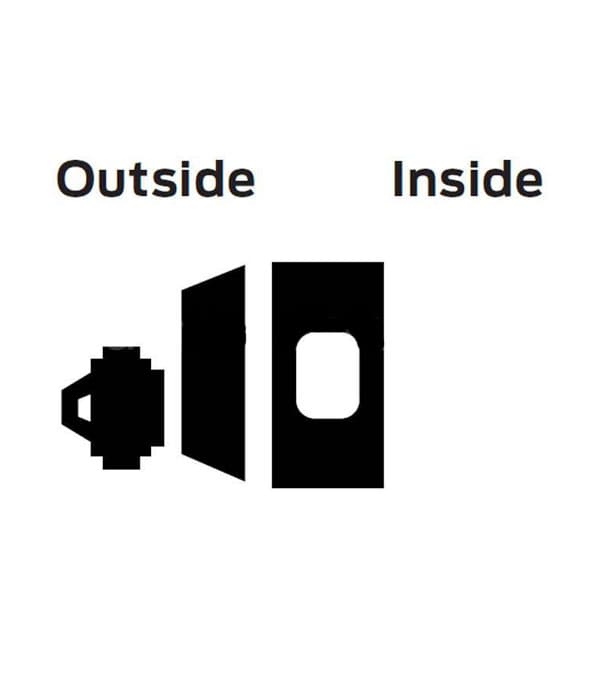

- Function: 64-Cylinder x No Trim
- Grade: ANSI/BHMA Grade 1
- Keyblank Grouping: SCHL-C-6-1
- Keying Charges: CCAM
- Keyway: Schlage C
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: B600 Series

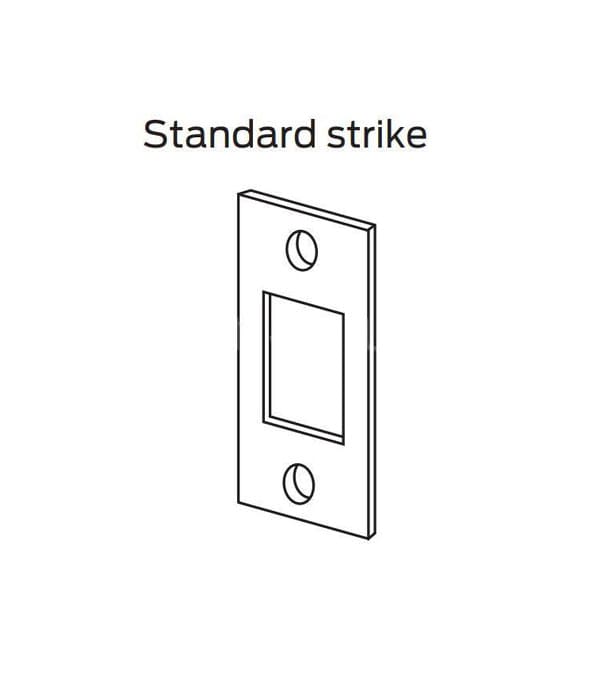

- Strike: Deadbolt, 1-1/8″ x 2-3/4″, Square Corner
Certifications
- ANSI:
B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements. - UL / cUL:
UL 10B and UL 10C listing optional for B500 Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
