Schlage Commercial L9040-06A-613-L583-363 L9040 Mortise Privacy Lock
The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security ? it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.
180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.
Specifications
- Finish: 613/US10B-Oil Rubbed Dark Bronze
- Finish Description: Oil Rubbed Dark Bronze

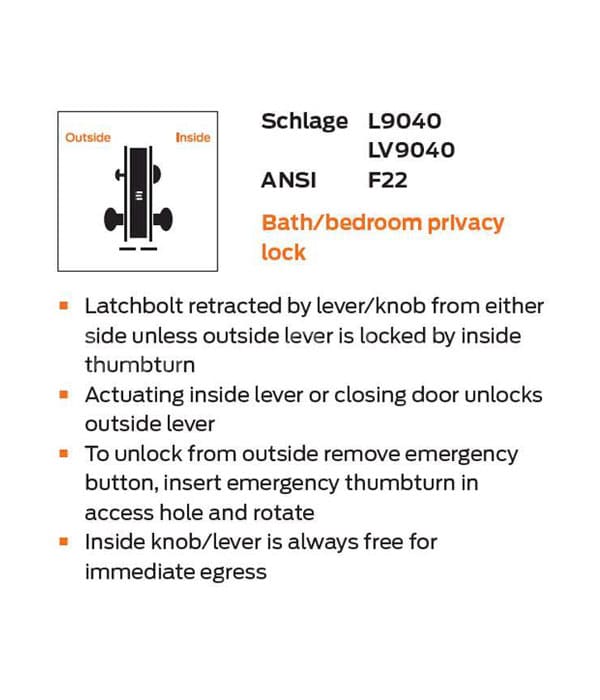

- Function: 9040-Privacy
- Grade: ANSI/BHMA Grade 1

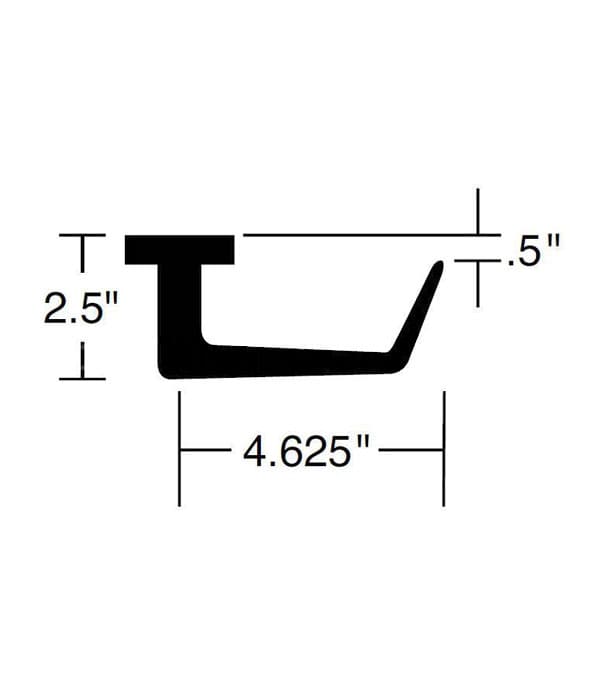

- Lever Style: 06-Lever
- Manufacturer: Schlage Commercial
- Product Type: Mortise Lock

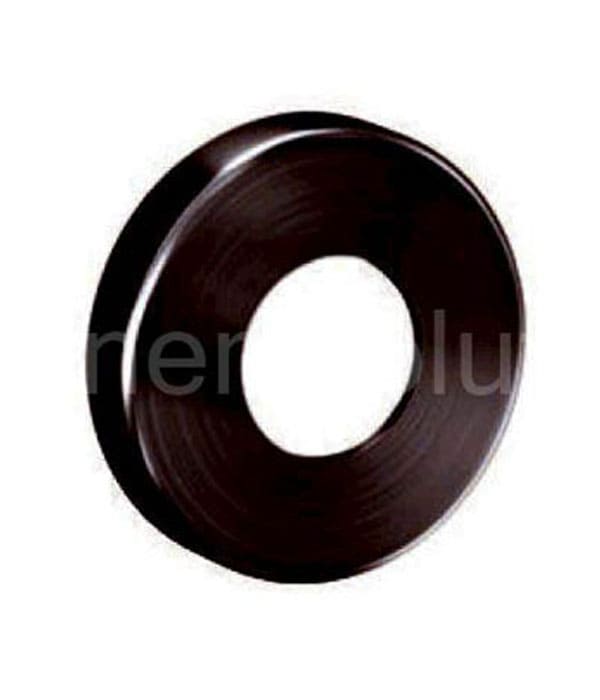

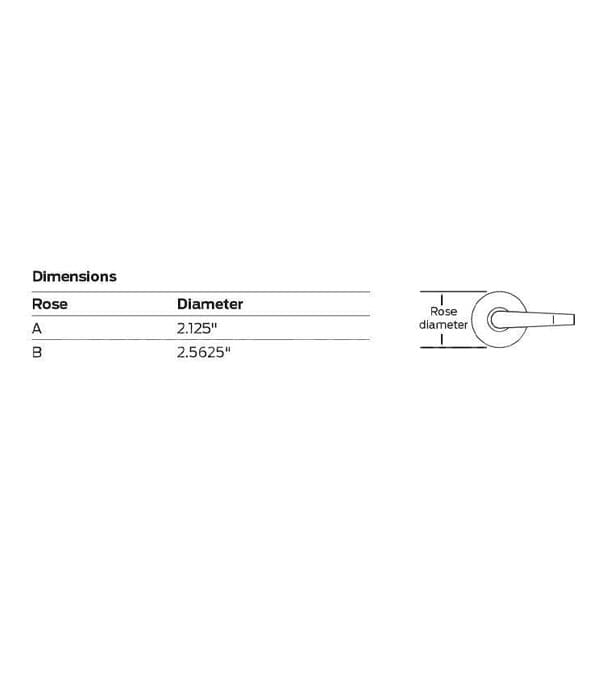

- Rose/Escutcheon Trim: A-Wrought Rose
- Series: L Series
Key features
- Exceeds ANSI/BHMA Gradel operational and security standards
- Expansive list of configurations and options, including retrofit indicators
- 50 standard mechanical functions, custom functions also offered
- “The Original” universal lock case allows creation of 10 functions from a single lock body
- 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL 437
Certifications
- ANSI/BHMA:
With FSIC interchangeable core cylinders: Grade 2 Security
With SFIC interchangeable core cylinders: Grade 3 Security
ASTM F476-76 Grade 40 - ICC:
Complies with ICC A117.1 Accessible and Usable Buildings and Facilities - UL/cUL:
UL 10C and CAN/ULC-S104 3-hour Fire Listed
All locks listed for A label single doors,
4′ x 10′ and pairs 8′ x 10′
Letter F and UL symbol on latch front indicate list
UL 437 Listed when using UL 437 cylinder
UL Listed for 3-hour fire door (except L9076 and L9077) - CA Fire Code:
(Formerly Title 19, California State Fire Marshal Standard)
All levers with a return to door of 1/2″
(64 mm) or less comply - FL Building Code:
Miami-Dade NOA’s and Florida Building Commission Listings - Warranty:
3 year limited mechanical and 1 year limited electromechanical
