Schlage Commercial S10D-NEP-613-16-203-10-026 S10D Neptune Passage Lock

Schlage Commercial S10D-NEP-613-16-203-10-026 S10D Neptune Passage Lock

Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.

Certifications

• ANSI:
  Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
• Federal:
  Meets FF-H-106C
• California State Reference Code:
  (Formerly Title 19, California State Fire Marshal Standard)
  All levers with a return to door of 1/2″ (64mm) or less comply.
• UL / cUL:
  All locks listed for A label single doors, 4′ x 8′. Letter F and UL symbol on latch front indicate listing.
• ADA compliant:
  Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act

Specification

• Backset: 2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
• Finish: 613/US10B-Oil Rubbed Dark Bronze
• Finish Description: Oil Rubbed Dark Bronze

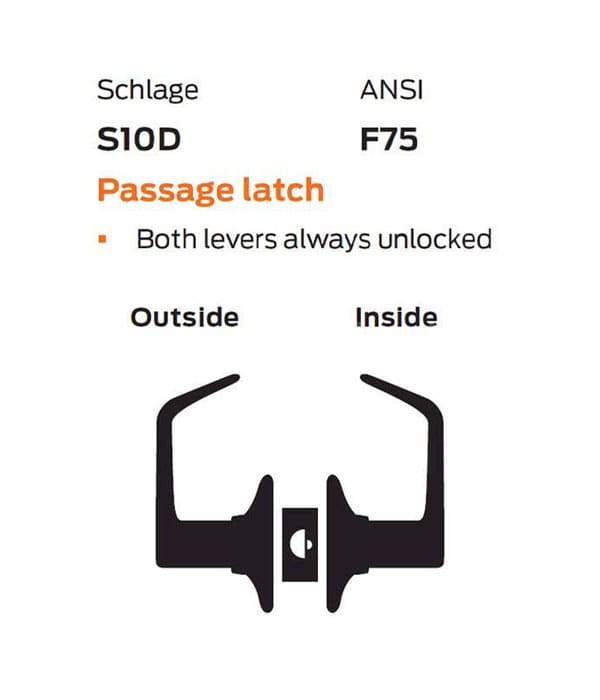

• Function: 10-Passage
• Grade: ANSI/BHMA Grade 2

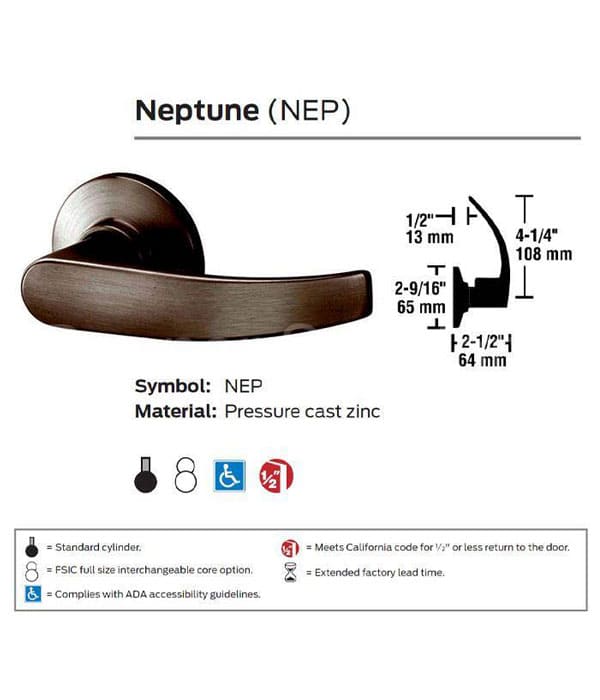

• Lever Style: NEP-Neptune
• Manufacturer: Schlage Commercial
• Product Type: Cylindrical Lock
• Rose/Escutcheon Trim: Round Rose
• Series: S Series
• Strike: Full Lip, 1-5/8″ x 2-1/4″ x Square Corner
