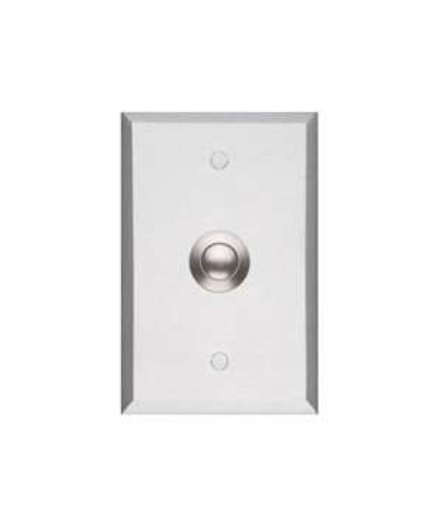

SDC 452V VANDAL RESISTANT STEEL PUSH SWITCH, 0.25 ALUM PLATE MO SPDT
The SDC 452V is a vandal resistant exit switch on a single gang faceplate that features a stainless steel finish and a momentary SPDT contact. The SDC 450 Series incorporates a 0.25″ thick aluminum faceplate and a stainless steel button. The assembly will resist the impact of a hammer blow. Tamper resistant aluminum plugs conceal and inhibit tampering security screws.
Features:
- Exit Switch
- Vandal Res.
- 5/8″ S.S.
- Momentary SPDT
- 6 Amp
- 1/4″ Plate
- Security Screws
- 1 Gang
- ” round stainless steel button
- ” thick aluminum faceplate
- Concealed tamer resistant security screws
- 6″ wire leads
- Momentary contact
- Single gang
Technical Specifications:
- Button: Round Dull Stainless Steel button, 1/2” (13 mm)
- Contact: 6 Amp @ 30VDC
- Wire Connections: 6, 20 gauge
- Dimensions: 2-7/8″ x 4-1/2″ x 1/4″ (73 x 114 x 6.35 mm)
- Finish: Stainless Steel
