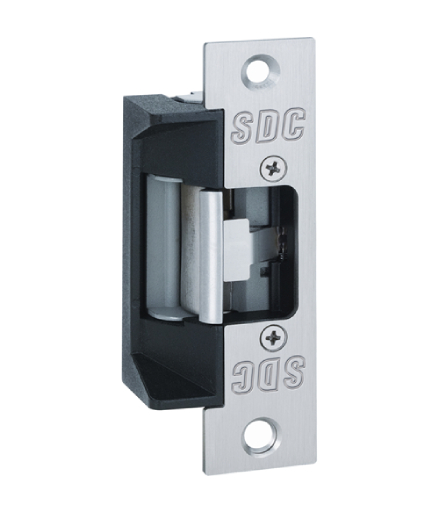

SDC 55-AU 55-A ELECTRIC STRIKE, 12/24V 630
55-AU heavy-duty electric strikes are designed for installation in hollow metal frames for access control of cylindrical and mortise locksets and mortise exit devices. The choice of 6 application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit , high security access control applications. The 55-A series is a universal strike for locksets with ANSI centerline latch entry locksets with up to a 3/4″ latchbolt.
Features:
- No Centerline Relocation
- Up to ” Latchbolt and 1″ Deadbolt
- Field Reversible, Failsafe/Failsecure
- 1/8 Horizontal alignment adjustment
- ANSI/BHMA A156.31 Grade 1
- Factory tested 2500 lbs,
- Exceeds 1,000,000 cycles
- UL tested 1500 lb Static strength
- 70 ft-lb Dynamic strength
- Internally Mounted Solenoid, No Heat in Keeper
- Dual Voltage 12/24VDC
- Tamper Resistant
- All Stainless Steel Corrosion Resistant Parts and Heavy Cast Body and Keeper
- Non-handed (Deadbolt status handed)
- Plug-in pig tail connectors
“
