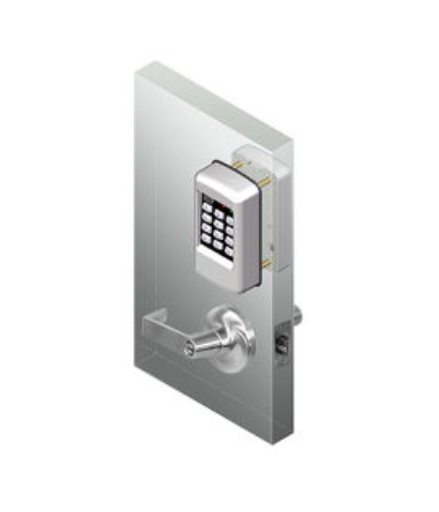

SDC E75PQG1Q E75 DIGITAL KEYPAD/PROX 626 GALAXY 626
The SDC EntryCheck E75 Series features Bluetooth enabled software and 10,000 event audit trails. E75 models can be retrofitted to existing prep for cylindrical locks. EntryCheck is a simplified solution requiring no wires, fewer components, less labor and costs for access control of single doors up to 3,000 users. These indoor/outdoor, standalone, wireless electronic battery powered solutions provide controlled access for basic and multi-level high security requirements. EntryCheck locksets are keypad programmable, and combine multiple access technology with efficient SDC motorized locksets.
Features:
- Keypad or PC Software Programmable
- 3,000 Users, 32 Temporary Users
- 4 to 6 Digit PIN Codes
- 3 Passage Mode Option
- 32 Access Groups, Schedules
- 32 Holidays
- 4 Authority Levels
- Keypad Tamper Lockout
- Mechanical Key Override
- Battery Powered (4AA)
- Blue Backlit Cast Metal Keys
- Weather & Vandal Resistant
- Retrofit Existing Lock Door Prep
- Motorized SDC Cylindrical Lockset
- Heavy Duty ANSI Grade 1
- Vandal Resistant Lever Clutch Mechanizm
Technical Specifications:
- Power: 4 Size AA Batteries (Alkaline) 100,000 cycles or External 12VDC Power @ 30mA
- Inputs: 1 Request to Exit, 1 Door Position Switch
- Output: 1 Aux Relay
- Contacts: SPDT 1A @ 30VDC
- Temperature: -20F to + 130F (-30C to + 54C)
- Humidity: 5% to 95% non-condensing
