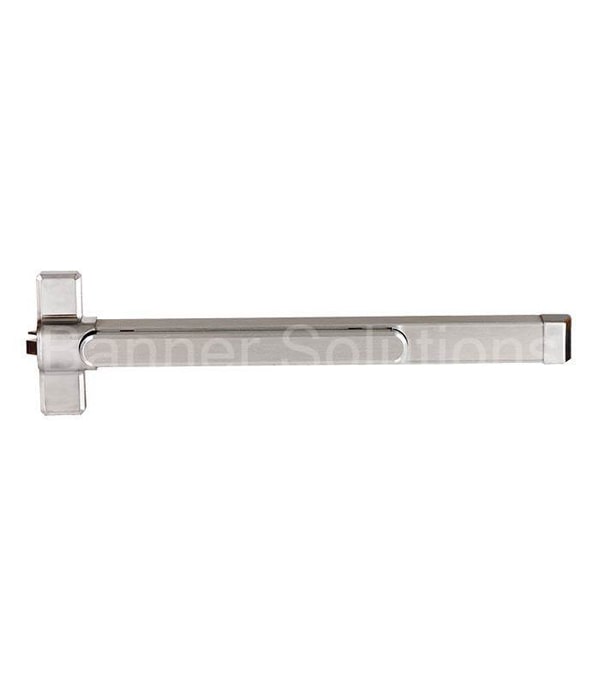

Stanley QED124-36-7-626 QED124 Series Heavy-Duty Exit Device

Stanley QED124-36-7-626 QED124 Series Heavy-Duty Exit Device

Discription:

Enhanced versatility for high-use applications.
STANLEY Commercial Hardware designed the QED100 exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. A comprehensive offering of trim and finish options makes the QED100 series compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution.

Strength and durability come standard.
We engineered our QED100 series with features like thru bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose.

STANLEY Commercial Hardware QED100 series exit devices provide ultimate strength and flexibility. And each product is backed by STANLEY?the name more Americans trust with their security.

Features:

• Comprehensive offering:
  With a wide range of device types, trim selections, and enhanced security features available, you can configure the QED100 series for even more applications.
• Consistent styling:
  We designed the QED100 series with the same aesthetic features you?ll find in QED200 narrow stile exit devices, so it?s easy to maintain consistent styling throughout your facility.
• Industry-leading warranty:
  Each QED100 product comes with a lifetime mechanical warranty, a three-year warranty on finish, and a one-year warranty on electrical components.
• Exceeds safety standards:
  The QED100 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. Available options include hurricane compliance and fire rating. The series includes a thru bolt design for enhanced security and durability.
• Easy installation:
  The QED100 series comes non-handed and field reversible, and is also field sizeable to fit non-standard doors.
• Short lead time:
  QED100 exit devices are available for immediate shipment

Certifications:

• ANSI/BHMA A156.3 Series?Grade 1
• ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
• UL/cUL listed (3 hour) for “A” label door applications (8′ by 8′)
• California Administrative Code Title 24 compliant for Sierra and Summit lever trims
• Hurricane Compliant ? Miami-DADA N.O.A. for Rim and SVR options

Materials and Options:

• Rim latch bolt:
  Stainless steel 3/4″ (19mm) standard
• SVR and CVR latch bolt:
  Stainless steel 1/2″ (12.7mm) throw
• Fasteners:
  Wood screws, machine screws, and sex bolts standard
• Head cap and end cap:
  Zinc die-cast
• Dogging:
  Hex key and cylinder dogging available

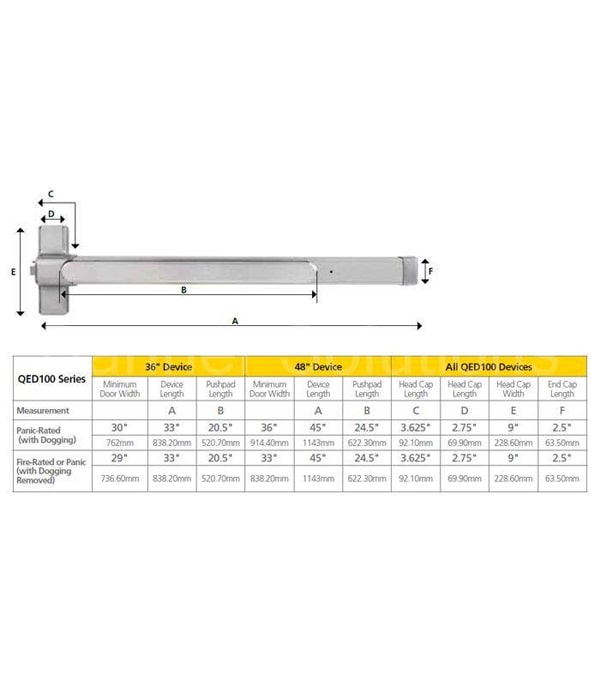

Sizing and Measurements:

• 36″ field sizeable to 32″ door
  48″ field sizeable to 36″ door
• Standard door thickness:
  1 3/4″ (44.5mm)
• Standard backset:
  2 7/8″ (62mm) to face of doorstop
• Rim stile width:
  4 1/4″ (108mm) minimum
• SVR and CVR stile width:
  3 1/2″ (89mm) minimum
• SVR and CVR door height:
  7′ and 8″ options

Keying:

• Keyway options include:
  BF-SFIC “F”, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder

Exit Device Functions:

• QED111:
  Rim Hex Dog
• QED112:
  Rim Cylinder Dog
• QED113:
  Rim Fire-rated
• QED114:
  SVR Hex Dog
• QED115:
  SVR Cylinder Dog
• QED116:
  SVR Fire-rated
• QED117:
  SVR Less Bottom Rod ? Hex Dog
• QED118:
  SVR Less Bottom Rod ? Cylinder Dog
• QED119:
  SVR Less Bottom Rod ? Fire-rated
• QED124:
  CVR Hex Dog
• QED125:
  CVR Cylinder Dog
• QED126:
  CVR Fire-rated
• QED127:
  CVR Less Bottom Rod ? Hex Dog
• QED128:
  CVR Less Bottom Rod ? Cylinder Dog
• QED129:
  CVR Less Bottom Rod ? Fire-rated

Electrification:

• QED__LR:
  Electrified Latch Retraction – Requires power supply 8Q00312 or 8Q00313
• QED__ED:
  Electrified Dogging – Uses power supply 8Q00314
• QED__X:
  Request to Exit
• QED__LRX:
  Electrified Latch Retraction with Request to Exit – Requires power supply 8Q00312 or 8Q00313
• QED__EDX:
  Electrified Dogging with Request to Exit – Uses power supply 8Q00314

Finishes:

• 313AN – Anodized Duranodic Bronze
• 605 – Bright Brass
• 626 – Satin Chrome

Warranties:

• Lifetime mechanical
• Three-year finish
• One-year electrical
