Suprema BEW2-OAPB Fingerprint reader/controller, MultiCLAS

Suprema BEW2-OAPB Fingerprint reader/controller, MultiCLAS

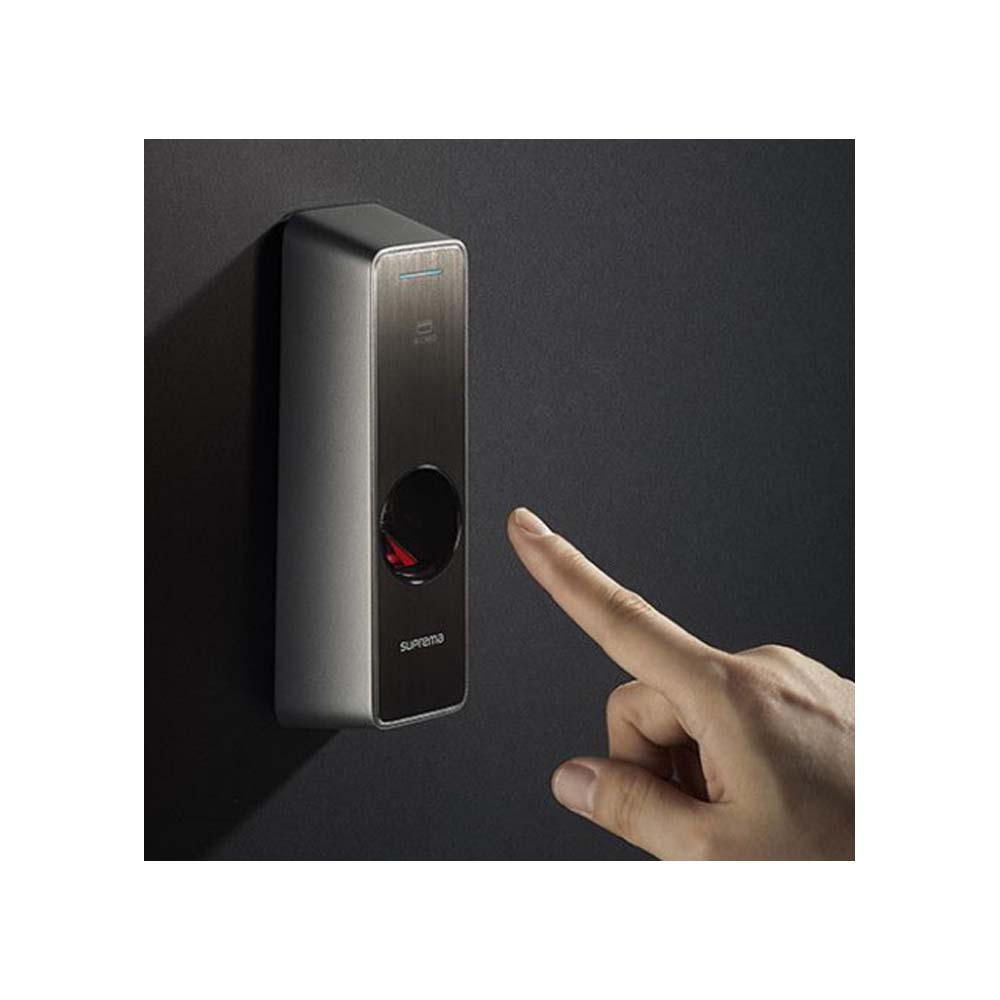

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema?s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema?s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.

Features:

• World?s Fastest Outdoor Fingerprint Device
  BioEntry W2 features a class-leading 1.2GHz Quad-core CPU that enhances user experience by offering World?s best matching speed, precise control of locking devices, and quick response for users.
• IK09 Vandal-proof Structure
  The BioEntry W2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema?s sophisticated engineering, the BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications.
• IP67, Dust & Water Proof
  BioEntry W2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioEntry W2 is the ideal choice for outdoor applications.
• Dual Frequency, Multi-Smartcard Reader
  Featuring dual-frequency RFID technology, BioEntry W2 supports both LF(125Khz) and HF(13.56MHz) RFID including all RFID standards that HID multiCLASS readers support. On top of fingerprint credential, BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM and NFC.
• Live Finger Detection Technology
  BioEntry W2 features new Live Finger Detection technology from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and so on.
• Power over Ethernet
  BioEntry W2 supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Suprema?s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.
• Versatile Interfaces
  BioEntry W2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.
