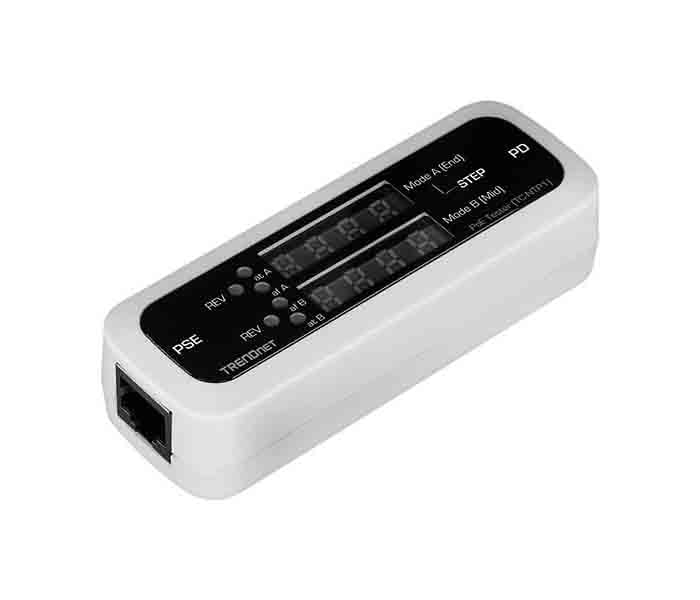

TRENDnet TC-NTP1 Inline POE Tester
FEATURES
- PORTS: This Inline PoE tester is equipped with 1 x Gigabit port for PSE connection, and 1 x Gigabit port for PoE Device connection
- TESTING MODES: The TC-NTP1 supports three testing functions. T-mode allows you to test your PSE device to determine the PoE switch’s or injector’s supported PoE standards, as well as voltage output. N-mode is used for non-standard passive PoE devices. I-mode is used for PoE inline testing, which displays the voltage, amperage, and wattage of the connected PD
- USER FRIENDLY: The TC-NTP1 PoE cable tester provides battery-free operation, and is ready for use right out of the box; just plug-in to start testing
- COMPATABILITY: The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V – 60V.
- STEP BUTTON: The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
SPECIFICATIONS
- ADI Part Number : TQ-TCNTP1
- Brand Name : TRENDnet
- Manufacturer Part Number : TC-NTP1
- NDAA Compliant : Yes
- Product Model : TC-NTP1
- Product Type : PoE Tester
TECHNICAL INFORMATION
- Device Function : Cable Signal Testing, PoE Testing
INTERFACES/PORTS
- Network (RJ-45) : Yes
- Number of Network (RJ-45) Ports : 2
PHYSICAL CHARACTERISTICS
- Depth : 1.4″
- Depth (mm) : 36
- Height : 1″
- Height (mm) : 26
- Weight (Approximate) : 1.60 oz
- Width : 3.9″
- Width (mm) : 100
