TRENDnet TQ-TEGS708 8-Port 10G Switch RJ-45, Rack Mountable

TRENDnet TQ-TEGS708 8-Port 10G Switch RJ-45, Rack Mountable

FEATURES

• Network Ports: Provides 8 x 10G ports for high-speed network connections

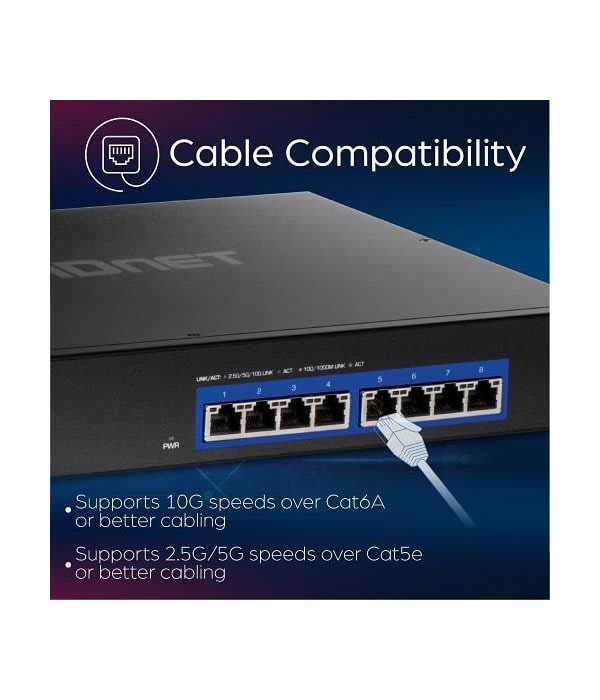

• 10G Ports: Connect 10GBASE-T supported devices at 10Gbps for increased throughput over existing Cat6A or better cabling
• Jumbo Frame: Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
• Rack Mountable: Sturdy metal housing with rack mountable design for greater installation flexibility
• LED Indicators: LED indicators conveniently convey port status

GENERAL INFORMATION

• ADI Part Number : TQ-TEGS708
• Product Name : 8-Port 10G Switch
• Product Type : Ethernet Switch
• Brand Name : TRENDnet
• Manufacturer Part Number : TEG-S708
• Weight (Approximate) (g) : 414

TECHNICAL INFORMATION

• Media Type Supported : Twisted Pair

INTERFACES/PORTS

• Network (RJ-45) : Yes
• Port/Expansion Slot Details : 8 x 10 Gigabit Ethernet Network
• Total Number of Network Ports : 8

MEDIA & PERFORMANCE

• Network Technology : 10GBase-T, 2.5GBase-T, 5GBase-T

NETWORK & COMMUNICATION

• Ethernet Technology : 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
• Layer Supported : 2
• Networking Standards : IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

PHYSICAL CHARACTERISTICS

• Compatible Rack Unit : 1U
• Product Material : Metal
• Form Factor : Rack-mountable
• Width : 1″
• Height : 4.3″

POWER DESCRIPTION

• Frequency : 50 Hz, 60 Hz
• Power Consumption (W) : 9.500

PRODUCT INFORMATION

• Length : 6.3″
