TRENDnet TFC-110S60 100base-Tx To 100base-Fx Single Mode Fiber Converter

TRENDnet TFC-110S60 100base-Tx To 100base-Fx Single Mode Fiber Converter

FEATURES

• SC type single-mode fiber port connects over distances of up to 60km (37.2miles)
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode

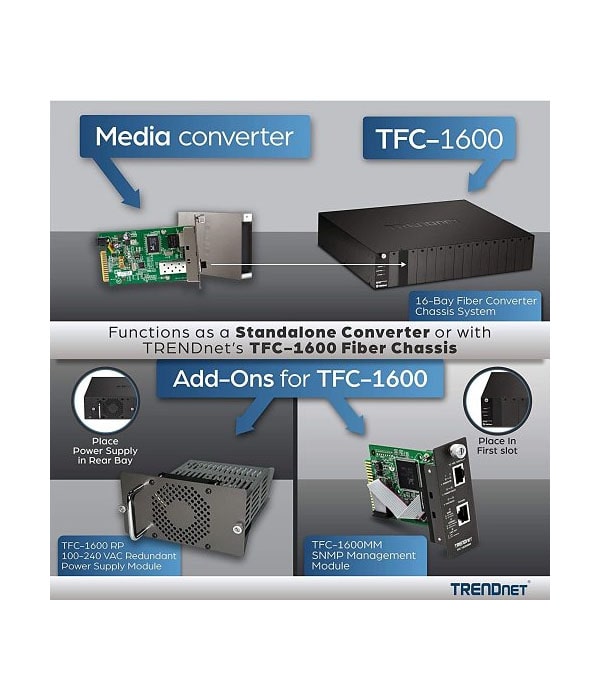

• Functions as a stand alone converter or with the TFC-1600 fiber chassis
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Lifetime TRENDnet Manufacturer’s Warranty

GENERAL INFORMATION

• ADI Part Number : TQ-TFC110S60
• NDAA Compliant : Yes
• Product Name : 10/100Base-TX to 100Base-FX Single Mode Fiber Converter (60KM)
• Product Type : Transceiver/Media Converter
• Brand Name : TRENDnet
• Manufacturer Part Number : TFC-110S60
• Weight (Approximate) (g) : 2594.548

TECHNICAL INFORMATION

• Media Type Supported : Optical Fiber, Twisted Pair

I/O EXPANSIONS

• Expansion Slot Type : SFP
• Number of Total Expansion Slots : 1

INTERFACES/PORTS

• Number of Network (RJ-45) Ports : 1
• Number of SC Ports : 1
• SC Port Type : Duplex
• Total Number of Ports : 2

MEDIA & PERFORMANCE

• Fiber Mode Supported : Single-mode
• Maximum Distance Supported : 37.28 Mile
• Network Technology : 10/100Base-TX, 100Base-FX

NETWORK & COMMUNICATION

• Ethernet Technology : Fast Ethernet

PHYSICAL CHARACTERISTICS

• Depth : 16″
• Form Factor : Wall Mountable
• Width : 11″
• Height : 4″
