TRENDnet TI-G162 16-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch, TI-G162, 14 x Gigabit Ports, 2 x Gigabit SFP Slots, 32Gbps Switching Capacity, IP30 Ethernet Network Switch, Lifetime Protection

TRENDnet TI-G162 16-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch, TI-G162, 14 x Gigabit Ports, 2 x Gigabit SFP Slots, 32Gbps Switching Capacity, IP30 Ethernet Network Switch, Lifetime Protection

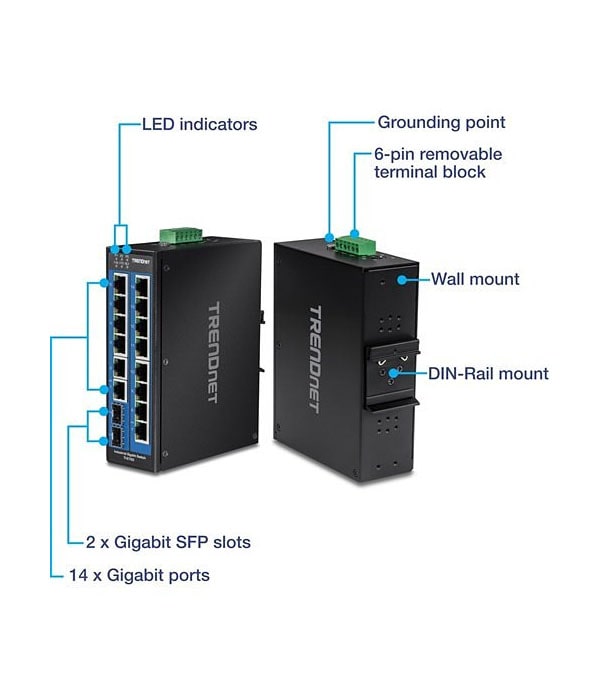

FEATURES

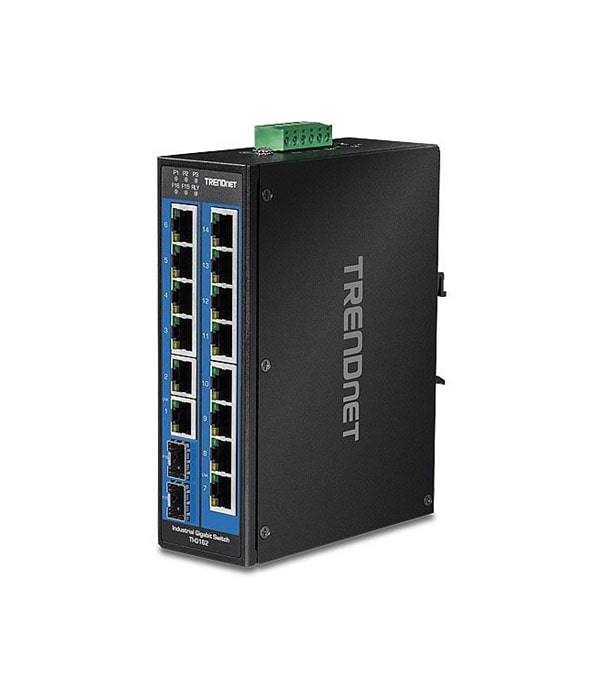

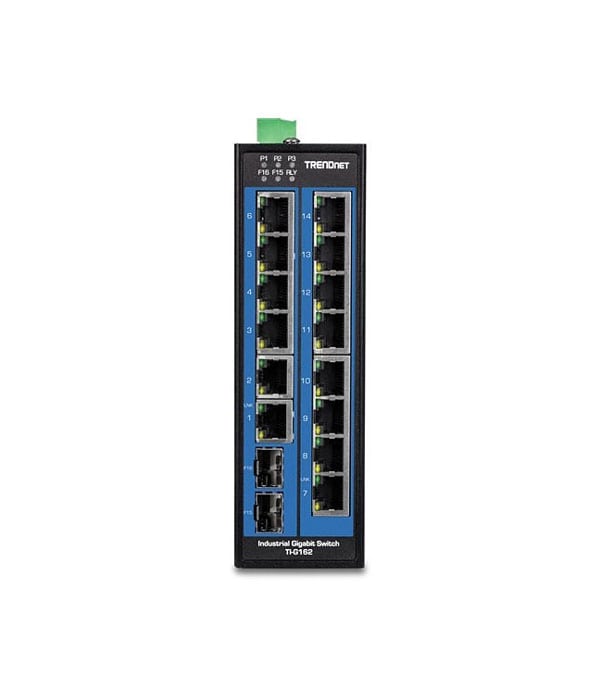

• 14 x Gigabit ports

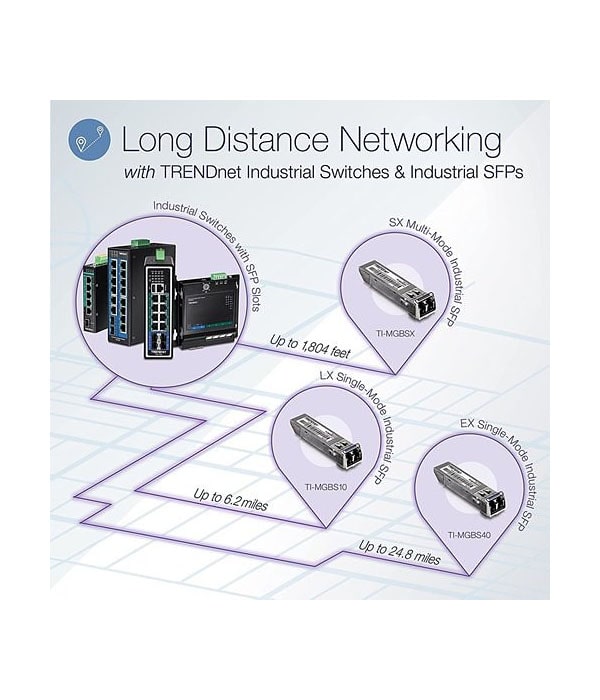

• 2 x Gigabit SFP slots
• 32Gbps switching capacity
• Hardened IP30 rated metal switch
• Power supply sold separately (model TI-M6024)

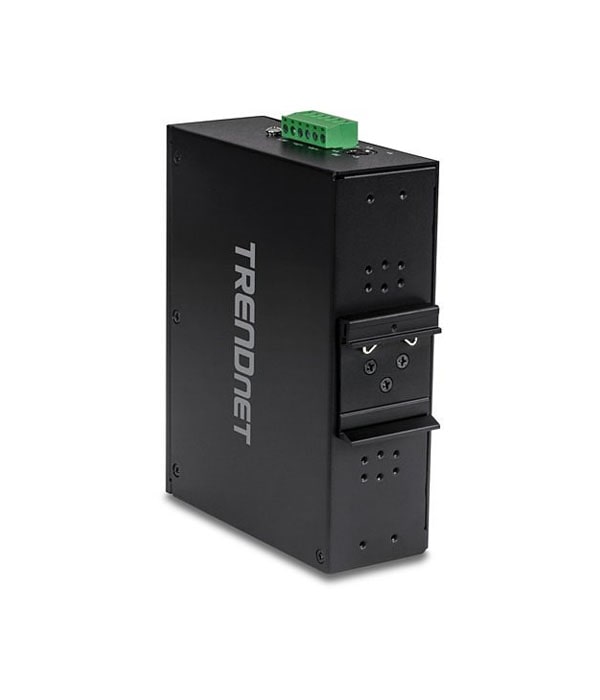

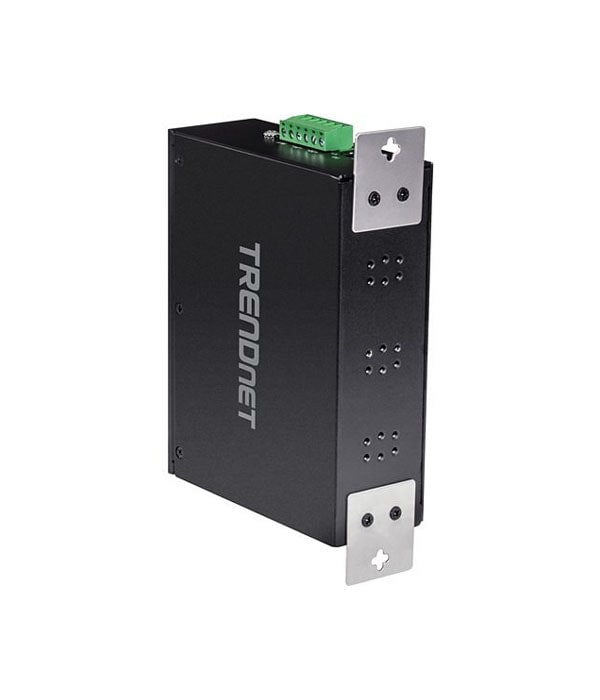

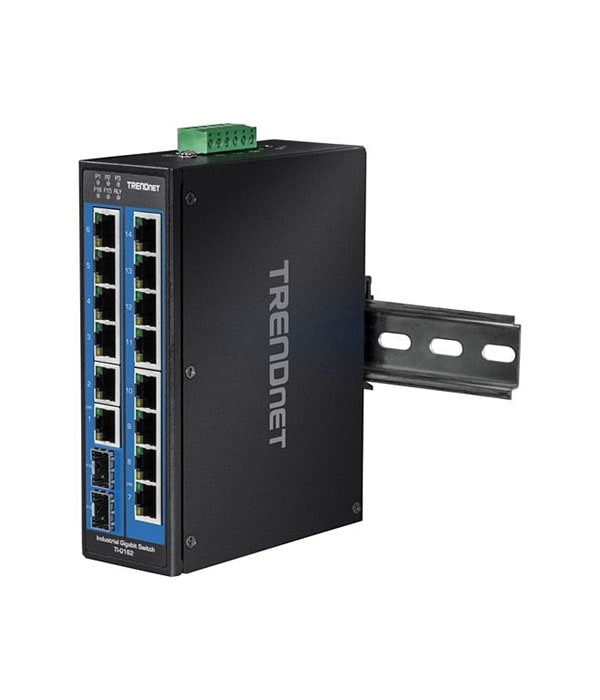

• Includes DIN-Rail mount and wall mount brackets
• Wide operating temperature range of -40? – 75?C (-40? – 167?F)

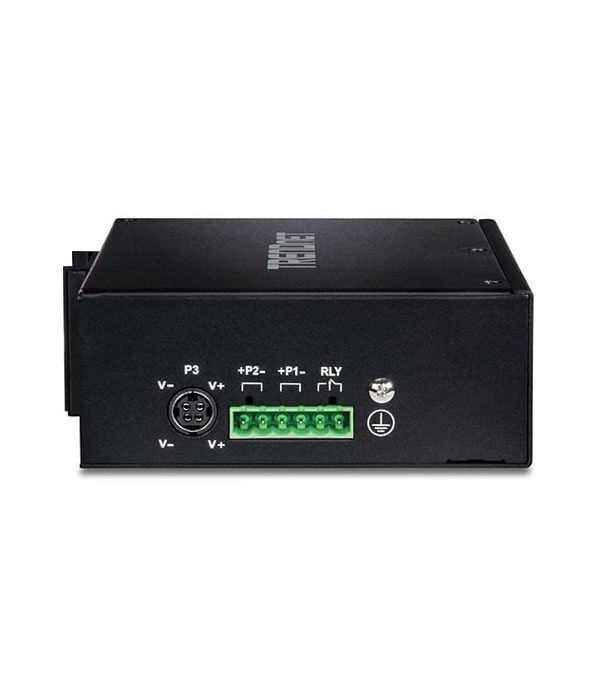

• Multiple power inputs provide redundant power with overload current protection
• Alarm output triggered by power failure
• Lifetime TRENDnet Manufacturer’s Protection

GENERAL INFORMATION

• ADI Part Number : TQ-TIG162
• NDAA Compliant : Yes
• Product Name : 16-Port Industrial Gigabit
• Product Type : Ethernet Switch, Industrial
• Brand Name : TRENDnet
• Manufacturer Part Number : TI-G162
• Weight (Approximate) (g) : 673.585

TECHNICAL INFORMATION

• Media Type Supported : Optical Fiber, Twisted Pair

I/O EXPANSIONS

• Expansion Slot Type : SFP (mini-GBIC)
• Number of SFP Slots : 2

INTERFACES/PORTS

• Modular : Yes
• Port/Expansion Slot Details : 114 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
• Total Number of Network Ports : 16

MEDIA & PERFORMANCE

• Network Technology : 1000Base-FX, 1000Base-T, 1000Base-X

NETWORK & COMMUNICATION

• Ethernet Technology : Gigabit Ethernet
• Layer Supported : 2

PHYSICAL CHARACTERISTICS

• Depth : 10″
• Form Factor : DIN Rail Mountable, Wall Mountable
• Width : 8″
• Height : 3″

POWER DESCRIPTION

• Power Source : Power Supply

PRODUCT INFORMATION

• Length : 6.1″
