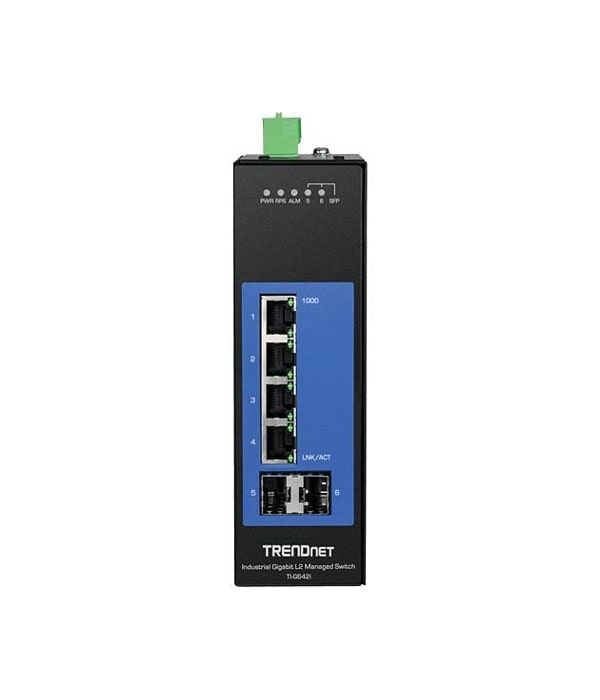

TRENDnet TI-G642I 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch, 4 x Gigabit Ports, 2 x SFP Slots, DIN-Rail Mount, IP30, VLAN, QOS, LACP, STP/RSTP, Bandwidth Management, Lifetime Protection, TI-G642I

TRENDnet TI-G642I 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch, 4 x Gigabit Ports, 2 x SFP Slots, DIN-Rail Mount, IP30, VLAN, QOS, LACP, STP/RSTP, Bandwidth Management, Lifetime Protection, TI-G642I

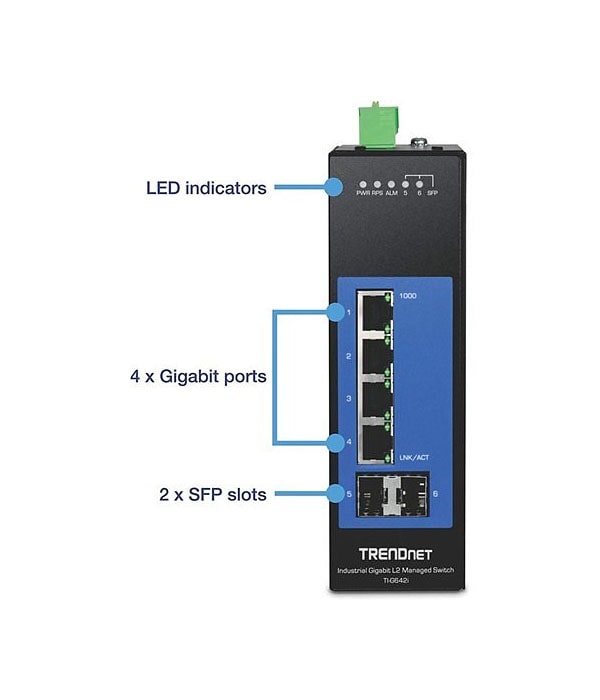

FEATURES

• 12Gbps switching capacity, Hardened IP30 rated metal housing
• Alarm output triggered by power failure

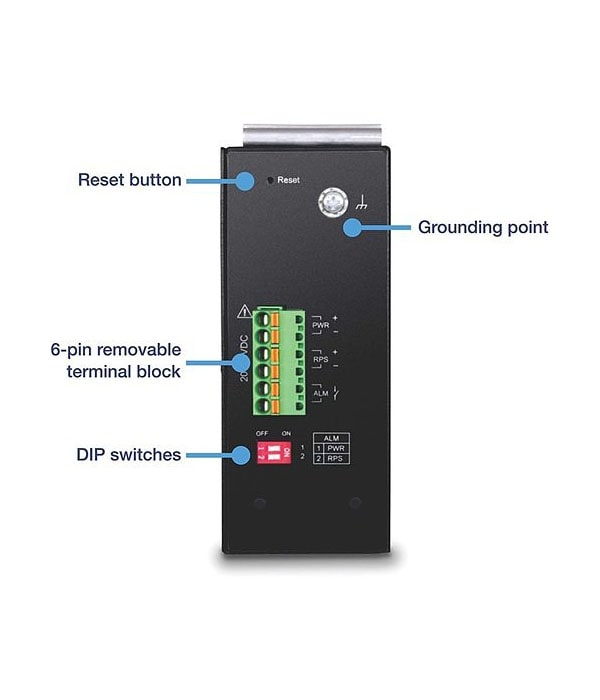

• Dual redundant power inputs with overload current protection
• IEEE 802.1p QoS with queue scheduling support, Bandwidth control per port
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• Operating temperature range of -40? – 75? C (-40? – 167? F)
• Power supply sold separately (model: TI-M6024), Includes DIN-rail mounting bracket

GENERAL INFORMATION

• ADI Part Number : TQ-TIG642I
• NDAA Compliant : Yes
• Product Name : 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch
• Product Type : Ethernet Switch, Industrial
• Brand Name : TRENDnet
• Manufacturer Part Number : TI-G642I
• Weight (Approximate) (g) : 673.585

TECHNICAL INFORMATION

• Media Type Supported : Optical Fiber, Twisted Pair

I/O EXPANSIONS

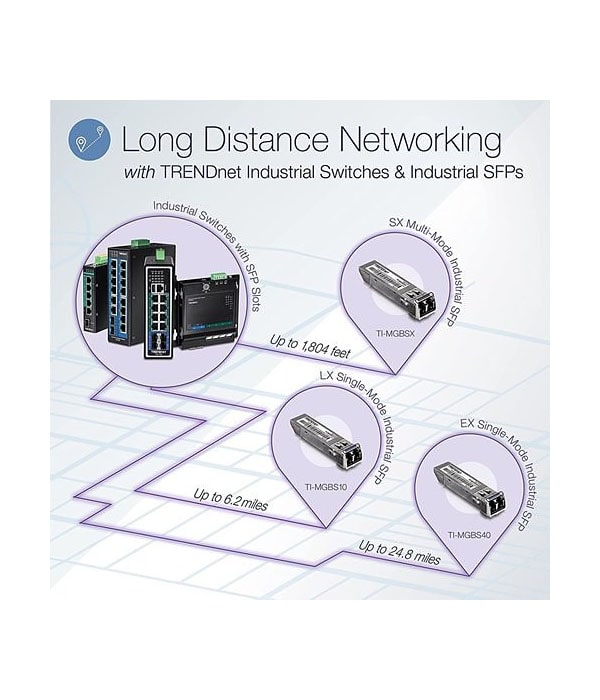

• Expansion Slot Type : SFP (mini-GBIC)
• Number of SFP Slots : 2

INTERFACES/PORTS

• Modular : Yes
• Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot, 4 x Gigabit Ethernet Network
• Total Number of Network Ports : 6

MANAGEMENT & PROTOCOLS

• Manageable : Yes

MEDIA & PERFORMANCE

• Network Technology : 100/1000Base-FX, 1000Base-T

NETWORK & COMMUNICATION

• Ethernet Technology : Gigabit Ethernet
• Layer Supported : 2

PHYSICAL CHARACTERISTICS

• Depth : 10″

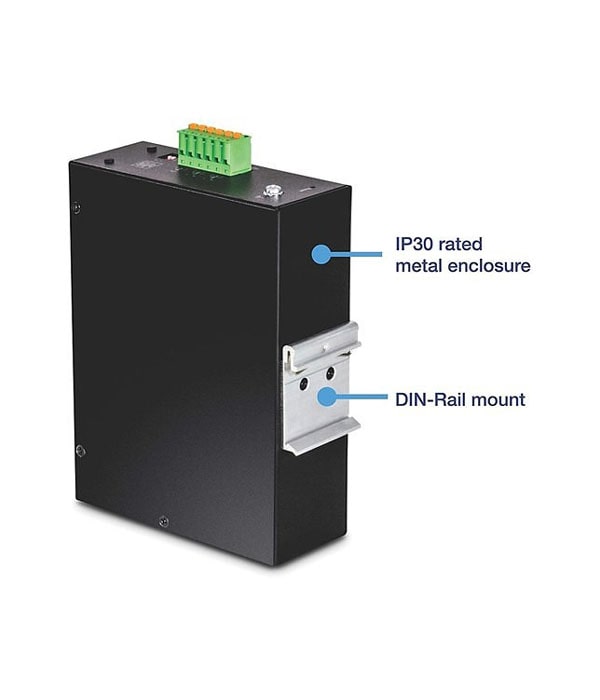

• Form Factor : DIN Rail Mountable
• Width : 5″
• Height : 3″
