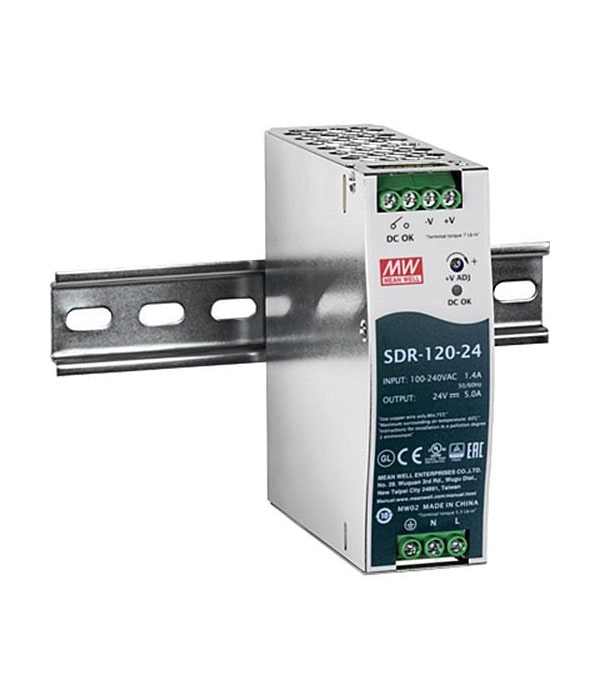

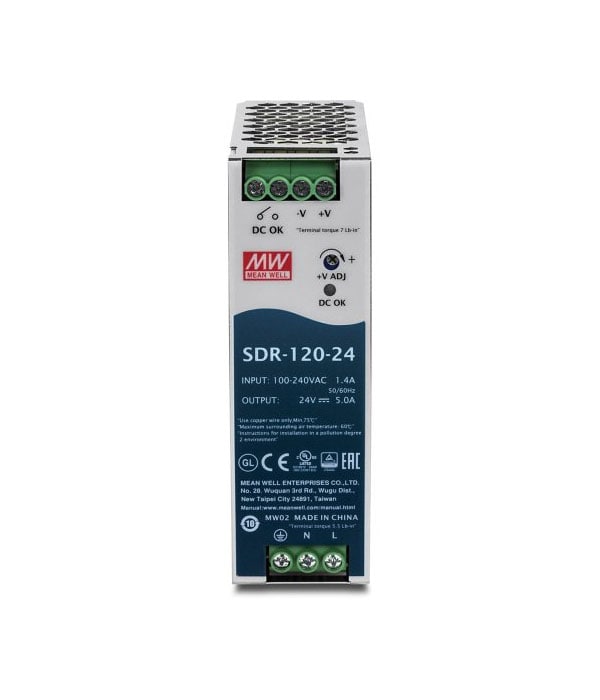

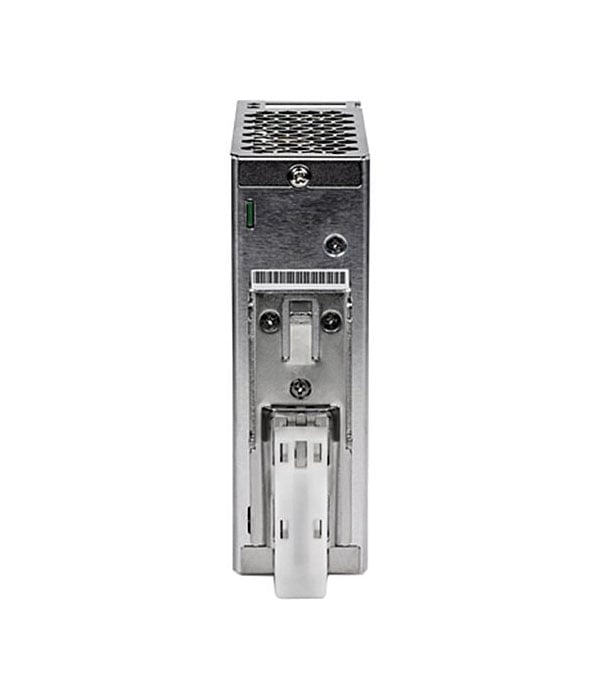

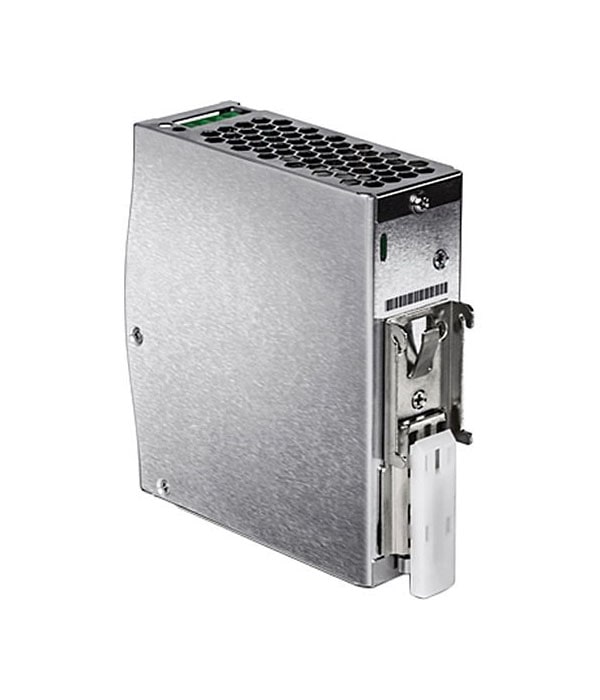

TRENDnet TI-S12024 120w, 24v, 5a AC To DC Din-Rail Power Supply With Pfc Function

TRENDnet TI-S12024 120w, 24v, 5a AC To DC Din-Rail Power Supply With Pfc Function

FEATURES

• Industrial power supply with integrated DIN-rail mount
• Provides up to 120W of power (24V DC, 5A)
• High efficiency 91% and low power dissipation
• 150% peak load capability
• Built-in active Power Factor Controller (PF > 0.93)
• Cooling by free air convection
• Protections: Short circuit, overload, over voltage, over temperature
• UL 508 approved

GENERAL INFORMATION

• ADI Part Number : TQ-TIS12024
• NDAA Compliant : Yes
• Product Name : 24V 120W Output Industrial
• Product Type : Industrial, Power Supply
• Brand Name : TRENDnet
• Manufacturer Part Number : TI-S12024
• Weight (Approximate) (g) : 670

TECHNICAL INFORMATION

• Output Voltage : 24 V DC @ 5 A

PHYSICAL CHARACTERISTICS

• Form Factor : DIN Rail
• Width : 7″
• Height : 3″

POWER DESCRIPTION

• Input Voltage : 120 V AC, 230 V AC
• Output Power : 120 W

PRODUCT INFORMATION

• Length : 9″
