TRENDnet TK-803R 8-Port USB/Ps/2 Rack Mount KVM Switch
FEATURES

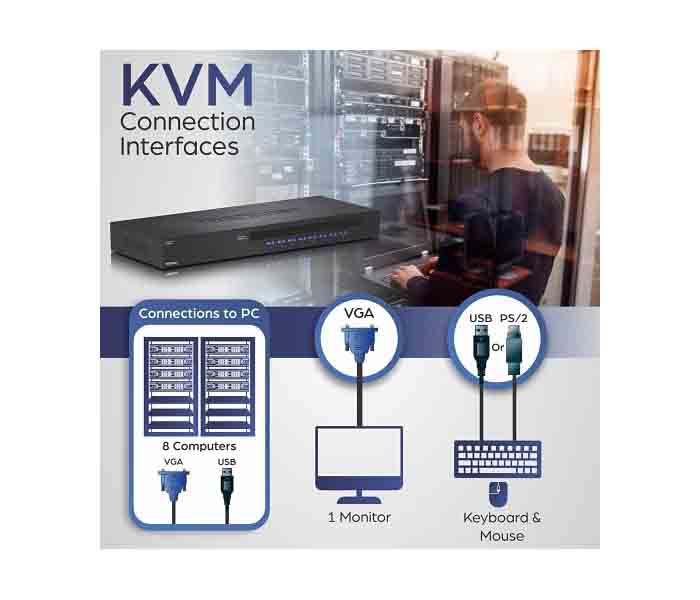

- PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
- MANAGE MULTIPLE PC’S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
- SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
- VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
- CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
- USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
- FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
SPECIFICATIONS
- ADI Part Number : TQ-TK803R
- Brand Name : TRENDnet
- Manufacturer Part Number : TK-803R
- NDAA Compliant : Yes
- Product Type : KVM Switchbox
TECHNICAL INFORMATION
- Number of Computers Supported : 8
- Number of Local Users Supported : 1
INTERFACES/PORTS
- Number of PS/2 Ports : 2
- Number of USB Ports : 2
- Number of VGA Ports : 9
- PS/2 Port : Yes
PHYSICAL CHARACTERISTICS
- Depth : 6.5″
- Depth (mm) : 165.1
- Form Factor : Rack-mountable
- Height : 1.8″
- Height (mm) : 45.72
- Rack Height : 1U
