Tripp-Lite B130-101-2 VGA over Cat5 Extender Kit Transmitter

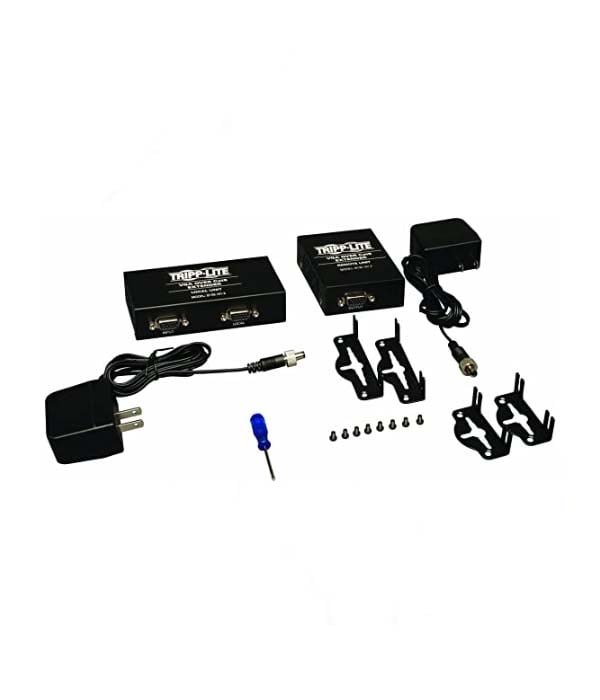

The Tripp-Lite B130-101-2 is a VGA over Cat5 Extender Kit Transmitter that allows you to extend VGA video signals over long distances using Cat5e/6 network cables. It consists of two components: the transmitter and the receiver.

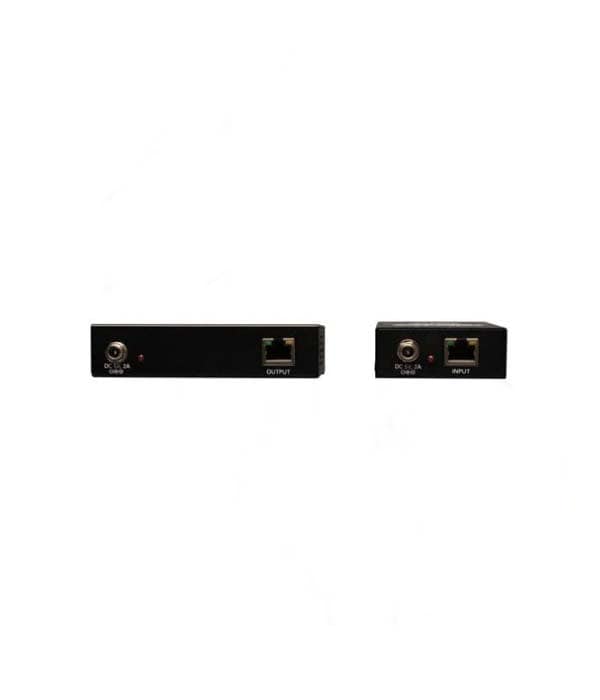

The transmitter unit connects to the VGA video source, such as a computer or a media player, and converts the VGA signal into a format that can be transmitted over Cat5e/6 cables. It has a VGA input port and an RJ45 output port for connecting the network cable.
The receiver unit is located at the remote end and connects to the display device, such as a monitor or a projector. It receives the VGA signal over the network cable from the transmitter unit and converts it back into a VGA signal for display.
The B130-101-2 extender kit supports a maximum resolution of 1920×1440 at 60Hz, allowing for high-quality video transmission. It also supports EDID (Extended Display Identification Data) communication between the source and the display, ensuring optimal video settings and compatibility.
This extender kit is capable of extending VGA signals up to 500 feet (150 meters) when using Cat5e/6 cables. It provides flexibility in cable installation and allows you to set up displays in remote locations while maintaining excellent video quality.
The kit is designed with plug-and-play functionality, making it easy to install and use. It does not require any additional power supply as it draws power from the VGA source device.
The Tripp-Lite B130-101-2 VGA over Cat5 Extender Kit Transmitter is a reliable solution for extending VGA signals over long distances. It offers flexibility, high-quality video transmission, and easy installation, making it suitable for various applications, including classrooms, conference rooms, digital signage, and home theater setups.
Features:
- Extend VGA video and audio signals up to 500ft away from the source using Cat5/Cat5e/Cat6 patch cables.
- Ideal for digital signage, classrooms, and any other installation where VGA video needs to be extended to long distances.
- Supports resolutions up to 1920×1440 at 60Hz.
- Compatible with all VGA video standards.
- Built-in Equalization and Gain control automatically adjusts the video signal for optimal quality.
Specifications:
- Connectors: HD15 (VGA), 3.5mm (audio), RJ45 (Cat5/Cat5e/Cat6)
- Maximum Resolution: 1920×1440 @ 60Hz
- Maximum Distance: 500ft
- Power Source: USB
- Dimensions: 2.25 x 1.4 x 3.5 in.
- Weight: 0.2 lbs.
