Tripp-Lite INTERNET350SER 350VA UPS System Compact Low Profile

Tripp-Lite INTERNET350SER 350VA UPS System Compact Low Profile


Ultra-compact standby UPS with built-in DB9 serial monitoring port protects PCs, network workstations, and other systems reliant upon a basic communications interface for UPS monitoring and unattended system shutdown. Maintains AC output during blackouts and brownouts starting at 99V. Includes DB9 monitoring port with cabling, TEL/DSL line surge suppression, surge only outlets and LED indicators. PowerAlert software available free via download. 3 year warranty (worldwide), plus $100,000 connected equipment insurance (USA, Puerto Rico, & Canada only)

Features:

• INTERNET350SER standby UPS offers protection from blackouts, brownouts and surges on both AC and dialup modem lines
• Provides seamless battery derived AC output during blackouts and severe brownouts so that connected equipment can be shut down without d ata loss

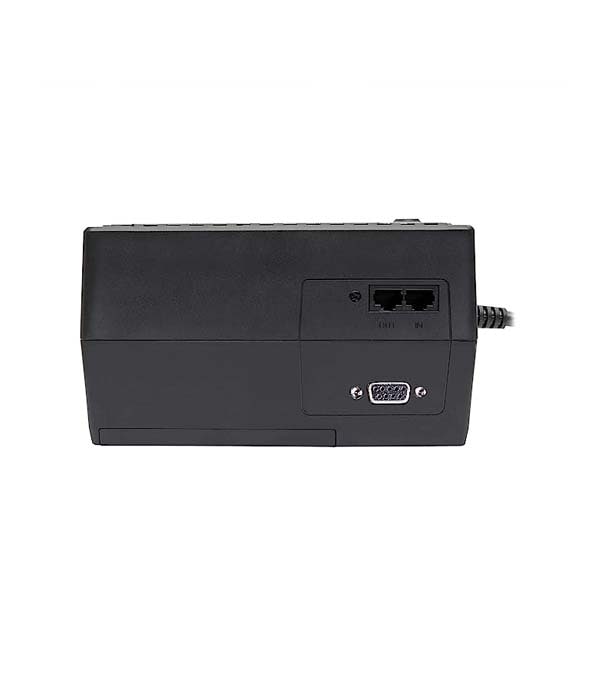

• Built-in DB9 interface port with basic communication monitoring enables automatic system shutdown if power fails while the system runs unattended
• 3 battery supported outlets protect computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support
• Attractive stealth black UPS color scheme
• Built-in single line phone jacks with line splitter protects peripherals with a standard dialup phone line connection
• Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation
• 50VA /180 watt power handling ability supports entry-level PC systems for several minutes during power fail conditions

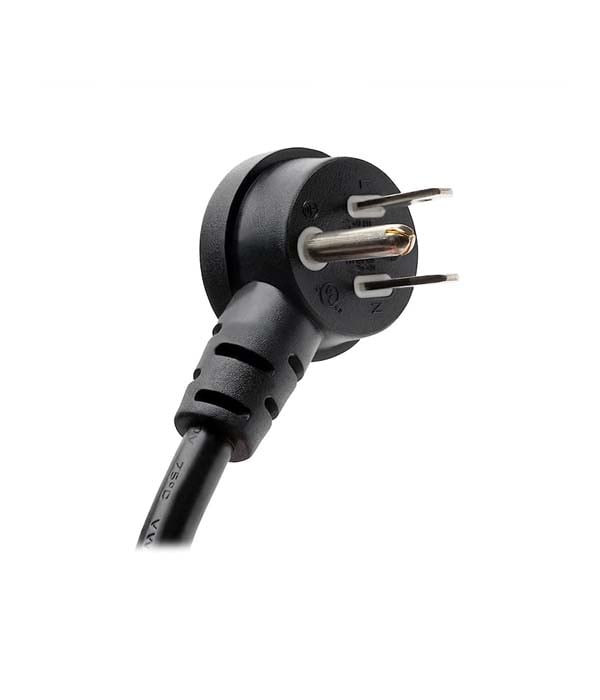

• Includes attached 6 ft. AC power cord with space saving right-angle plug, on/off power switch
• Compatible with 120V/60 Hz applications in USA, Canada, Mexico and other countries
• Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
• $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico, & Canada only)

Specifications:

• Ultra-Compact Standby UPS With Serial Port
• Output VA Capacity: 350 VA
• Output Watt Capacity (Watt): 180 Watt
• Nominal Output Voltage Supported: 115 Volt, 120 Volt
• Frequency Compatibility: 60 Hz
• Output Voltage Regulation (Battery Mode): 115 Volt (+/- 5%)
• UPS Output Receptacles (Surge Suppression Only): 3 UPS Outlets, 3 Surge-Only Outlets
• Hot-Swap PDU Options: PDUB15 (2U/8 5-15R Outlets)
• Output AC Waveform (AC Mode): Sine Wave
• Output AC Waveform (Battery Mode): PWM Sine Wave
• Rated Input Current (Maximum Load): 12 Amp
• Nominal Input Voltage Supported: 120 Volt AC
• UPS Input Connection Type: 5-15P
• UPS Input Cord Length: 1.8 m (6 ft)
• Recommended Electrical Service: 15 Amp 120 Volt
• Input Phase: Single-Phase
• Half Load Runtime: 10 Min (90 Watt)
• DC System Voltage: 12 Volt DC
• LED Indicator: 2 LEDs Indicate Power Status And Overload/Check Battery Status
• Audible Alarm: Audible Alarm Indicates Power-Failure And Overload Status
• Switches: Combination Switch Controls On/Off Power Status And Self-Test Operation
• UPS AC Suppression Joule Rating: 510
• UPS AC Suppression Response Time: Instantaneous
• UPS Dataline Suppression: 1 Line TEL/DSL (1 In/1 Out)
• EMI/RFI AC Noise Suppression: Yes
• Installation Form Factors Supported With Included Accessories: Tower, Ultra-Compact Desktop
• Primary Form Factor: Desktop
• UPS Power Module Dimensions (HxWxD): 3 Inch x 10.5 Inch x 5 Inch (7.6 cm x 26.7 cm x 12.7 cm)
• UPS Power Module Weight: 7.7 lb (3.5 kg)
• UPS Housing Material: ABS
• Operating Temperature Range: 32 to 104 deg F (0 to 40 deg C)
• Storage Temperature Range: 5 to 122 deg F (-15 to 50 deg C)
• Relative Humidity: 0 – 95% Non-Condensing
• AC Mode BTUs (Full Load): 39.1 BTU/Hour
• Battery Mode BTUs (Full Load): 53.2 BTU/Hour
• AC Mode Efficiency Rating (100% Load): 94%
• Communications Interface: DB9 Serial
  Communications Cable: DB9 Interface Cable Included
• Transfer Time: 2 – 4 mS
• Low Voltage Transfer to Battery Power (Setpoint): 99 Volt
• High Voltage Transfer To Battery Power (Setpoint): 139 Volt
• Cold Start (Startup in Battery Mode During a Power Failure): Cold-Start Operation Supported
• Output Receptacle: (6) 5-15R
