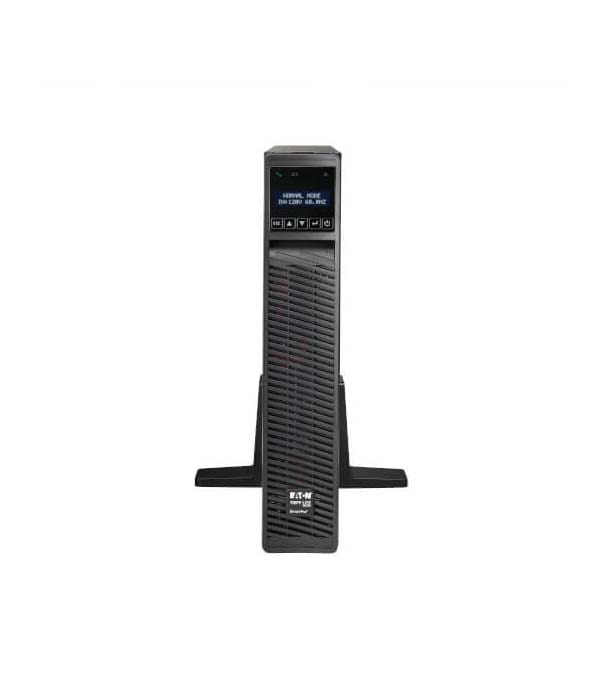

Tripp-Lite SMART2200RM2U 2200VA UPS Smart Pro Rack/Tower Line-Int

Tripp-Lite SMART2200RM2U 2200VA UPS Smart Pro Rack/Tower Line-Int

SMART2200RM2U, 2200VA/920W line interactive UPS system. 2U rackmount or tower form factor. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages. NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring softwareg. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. Audible alarm. Field-replaceable, hot-swappable internal batteries.

Features:

• Tripp Lite SMART2200RM2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity
• Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

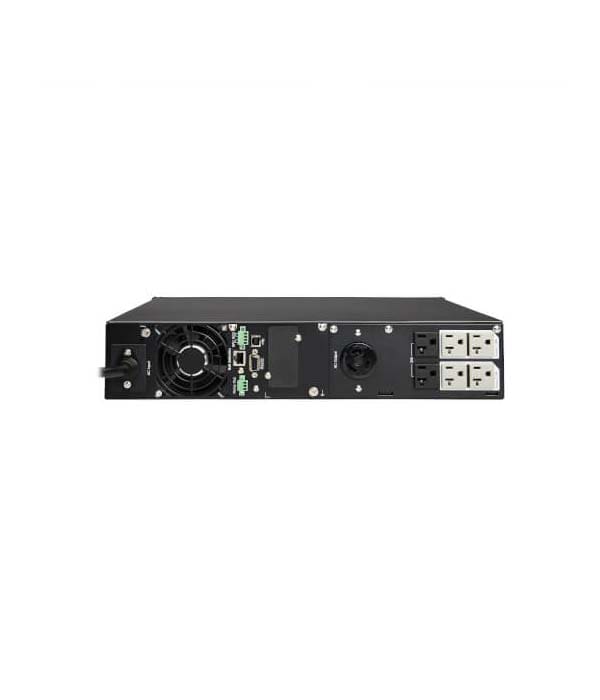

• NEMA 5-20P input plug; 4 NEMA 5-15R & 4 NEMA 5-15/20R output receptacles, Two independently switchable output load banks
• Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
• High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
• Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
• Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment
• Itelligent battery management system extends battery life
• Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
• LCD interface also supports a number of advanced user setup and operating preferences

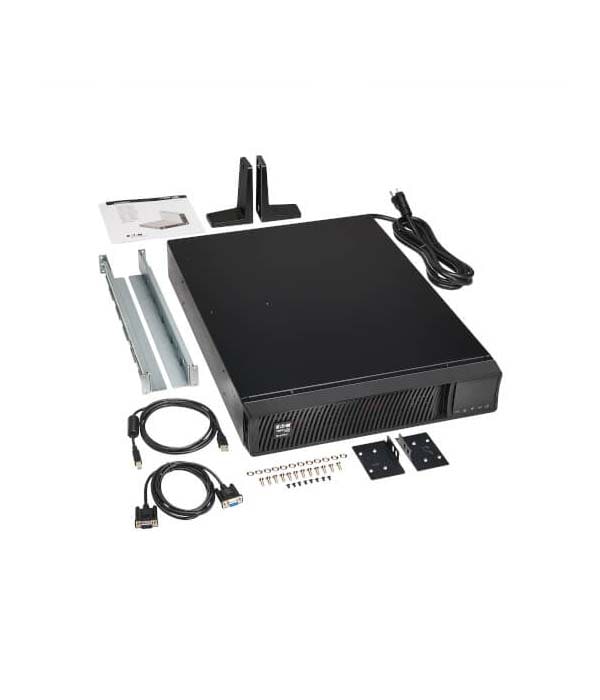

• Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
• Built-in USB, RS-232 and slot for network management accessory cards; Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
• HID-compliant USB port enables integration with built-in power management and auto s hutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite?s PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Built-in Emergency Power Off (EPO) interface with cable
• This product is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment
