Tripp-Lite SMART2200RMXL2U 2200VA UPS System SmartPro Rack/Tower Li

Tripp-Lite SMART2200RMXL2U 2200VA UPS System SmartPro Rack/Tower Li


SMART2200RMXL2U, 2200VA line interactive UPS system. 2U rackmount or tower form factor. Expandable runtime options. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages. Includes NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software. EPO interface. 3-stage metered current monitoring and battery charge status LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries and external battery packs.

Features:

• Tripp Lite SMART2200RMXL2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
• Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

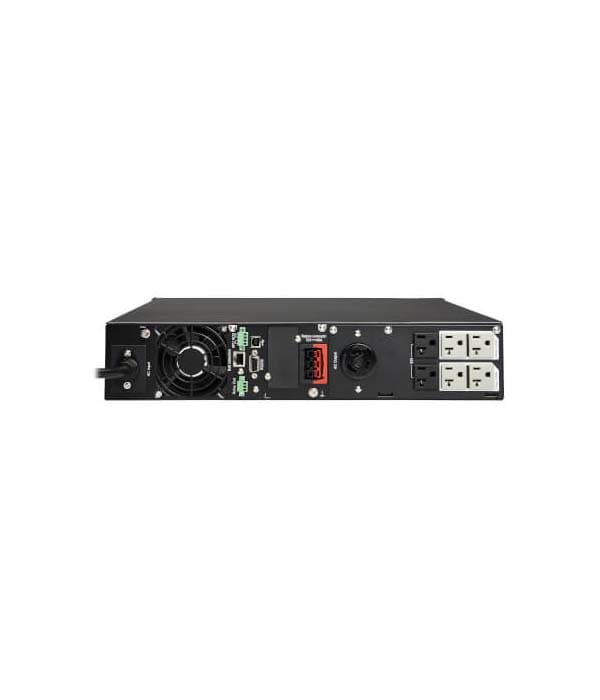

• NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
• Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
• High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
• Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
• Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), Output is reduced to 1600 watts maximum with external battery packs
• External battery configurations require the use of Tripp Lite?s External Battery Configuration Software (see manual)
• Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
• Intelligent battery management system extends battery life
• Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
• LCD interface also supports a number of advanced user setup and operating preferences

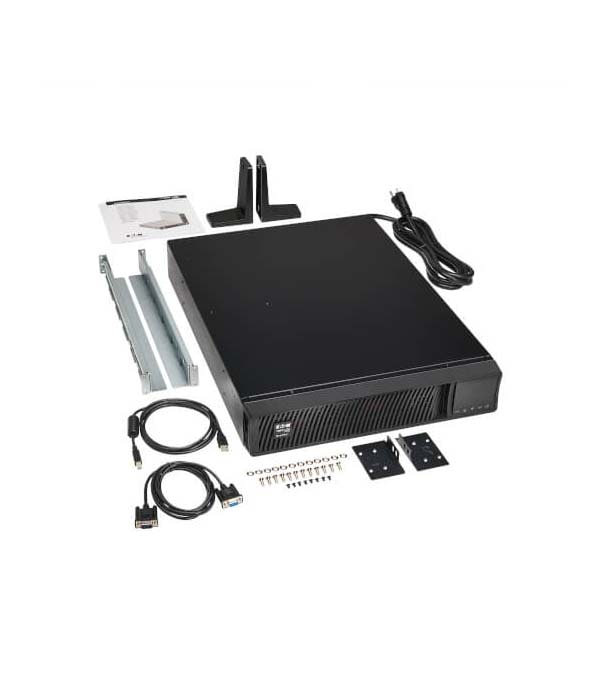

• Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
• Built-in USB, RS-232 and slot for Network Management Card option; Compatible with Tripp Lite
• UPS management card options TLNETCARD , WEBCARDLX and SNMPWEBCARD
• HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite?s PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Built-in Emergency Power Off (EPO) interface with cable
• Energy Star qualified
