Tripp-Lite T020-001-PSF Tripp Lite Fiber Cable Tester Power

Tripp-Lite T020-001-PSF Tripp Lite Fiber Cable Tester Power

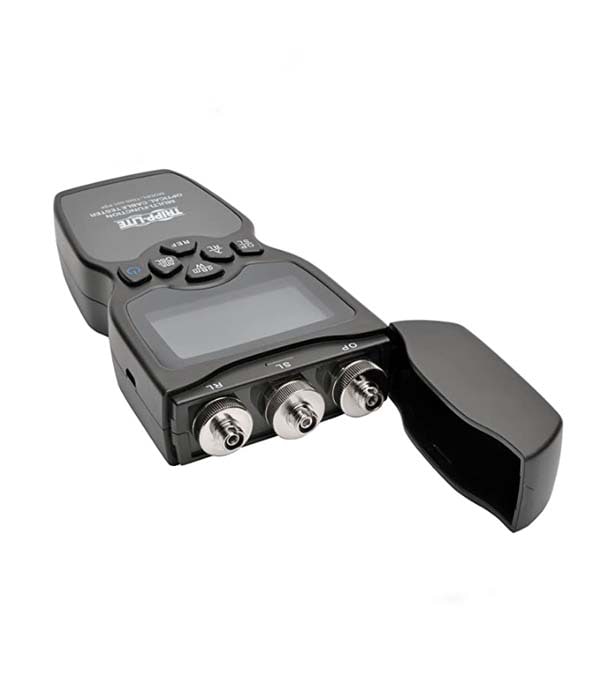

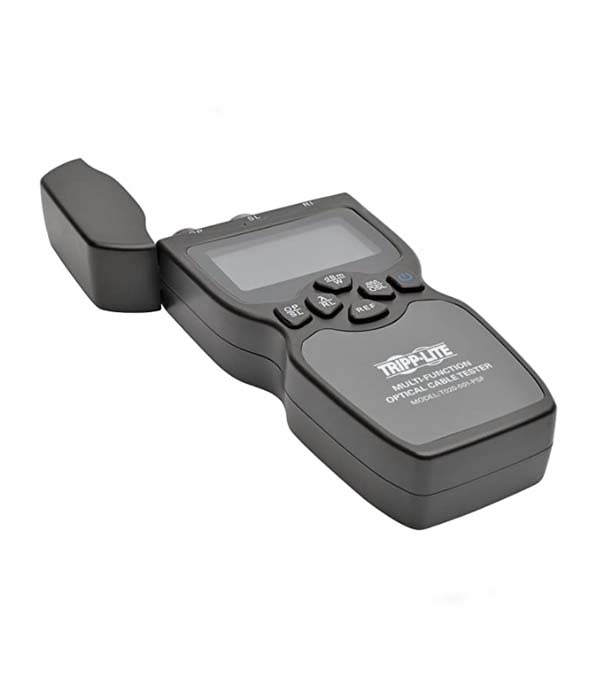

The Tripp-Lite T020-001-PSF is a fiber cable tester power meter designed to provide accurate measurements of optical power levels in fiber optic cables.

This power meter is specifically designed for use with single-mode and multimode fiber optic cables. It allows you to measure optical power in dBm (decibel-milliwatts) units, providing precise readings of the power levels being transmitted through the fiber.

The T020-001-PSF features a user-friendly interface with an easy-to-read LCD display that shows the measured power level. It has a wide dynamic range, allowing it to accurately measure both high and low power levels. The power meter is calibrated to industry-standard wavelengths, ensuring accurate measurements across different fiber types and wavelengths.

The T020-001-PSF also provides additional features such as relative power measurement and a data logging capability. The relative power measurement allows you to compare power levels between two different points in the fiber link, providing valuable information for troubleshooting and performance optimization. The data logging feature enables you to store and retrieve power measurement data for later analysis.

The power meter is compact and portable, making it suitable for both field and laboratory use. It is powered by replaceable batteries, ensuring long-lasting operation and flexibility in various environments.

The Tripp-Lite T020-001-PSF is a reliable and accurate fiber cable tester power meter that allows you to measure optical power levels in fiber optic cables. Its user-friendly interface, wide dynamic range, and additional features make it a valuable tool for fiber optic network installation, maintenance, and troubleshooting tasks.

Features:

• Measures optical power in both single and multimode fiber applications
• 1310/1550nm source for testing optical fiber cables
• Power meter has a range of -50 to +26 dBm
• Backlit LCD screen displays power level, wavelength, and other important information
• Powered by a 9V battery
• Compact design for easy use in the field

Specifications:

• Type: Fiber cable tester power meter
• Power meter range: -50 to +26 dBm
• Wavelength range: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
• Fiber types: Singlemode, multimode
• Display: Backlit LCD screen
• Power source: 9V battery
• Dimensions: 6.2 x 3.1 x 1.3 inches
• Weight: 4.8 ounces
