Vertical Cable 062-503/S/Bk Cat6 OAS PVC 23AWG 1000ft – Black

Vertical Cable 062-503/S/Bk Cat6 OAS PVC 23AWG 1000ft – Black

The cable is constructed with solid copper conductors, which provide excellent conductivity and signal transmission. The 23AWG (American Wire Gauge) conductor gauge ensures optimal performance and helps minimize signal loss over long distances.

With a length of 1000ft (305 meters), this cable provides ample length for networking installations in homes, offices, or other settings. The generous length allows for flexibility in routing and connecting devices without the need for additional splicing or extensions.

The Cat6 specification of the cable enables high-speed data transmission, supporting bandwidths of up to 550MHz. This makes it suitable for demanding applications such as streaming HD video, online gaming, and large file transfers. It is backward compatible with Cat5e and lower category cables, ensuring compatibility with existing network infrastructure.

The cable follows the TIA/EIA-568-C.2 wiring standard, ensuring compatibility and interoperability with other networking devices and equipment. It is designed for easy termination and can be used with RJ-45 connectors, making installation and maintenance convenient.

The Vertical Cable 062-503/S/Bk Cat6 OAS PVC 23AWG 1000ft – Black offers reliable performance, durability, and versatility. It is suitable for a wide range of networking applications, including home networks, small businesses, and larger commercial installations. Whether you’re connecting computers, printers, servers, or other Ethernet-enabled devices, this cable provides a stable and efficient network connection.

Specifications

• Cable Type: Cat6 (Category 6)
• Cable Length: 1000ft (305 meters)
• Conductor Type: Solid Copper
• Conductor Gauge: 23 AWG (American Wire Gauge)
• Jacket Material: PVC (Polyvinyl Chloride)
• Jacket Color: Black

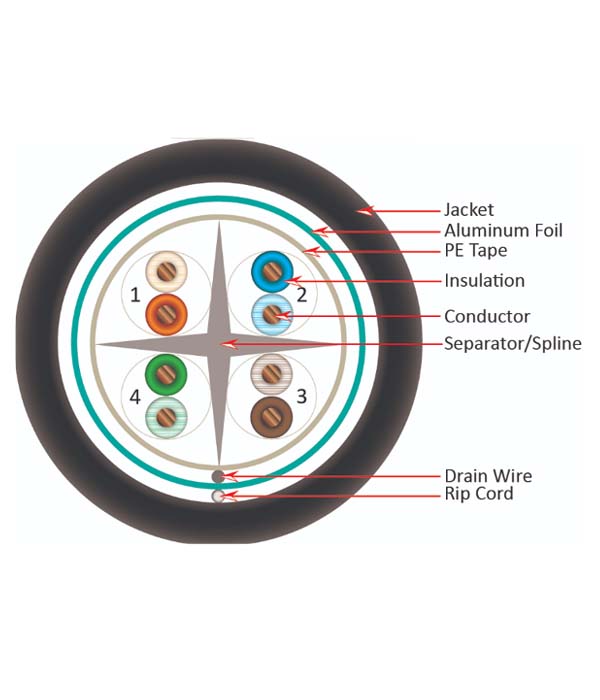

• Pair Separation: Cross-shaped center spline for enhanced crosstalk resistance
• Wiring Standard: TIA/EIA-568-C.2
• Frequency Rating: Up to 550MHz
• Data Transmission Rate: Up to 10Gbps
• Impedance: 100 Ohms
• Insulation Material: High-density polyethylene (HDPE)
• Fire Rating: CM (In-wall rated)
• RoHS Compliant: Yes
• Compliance: Meets ANSI/TIA-568-C.2 standards for enhanced performance and reliability
• Operating Temperature: -20?C to +75?C (-4?F to +167?F)
• Jacket Thickness: 0.6mm
• Rip Cord: Included for easy cable jacket removal
• Cable Markings: Sequential footage markings on the jacket for easy measurement

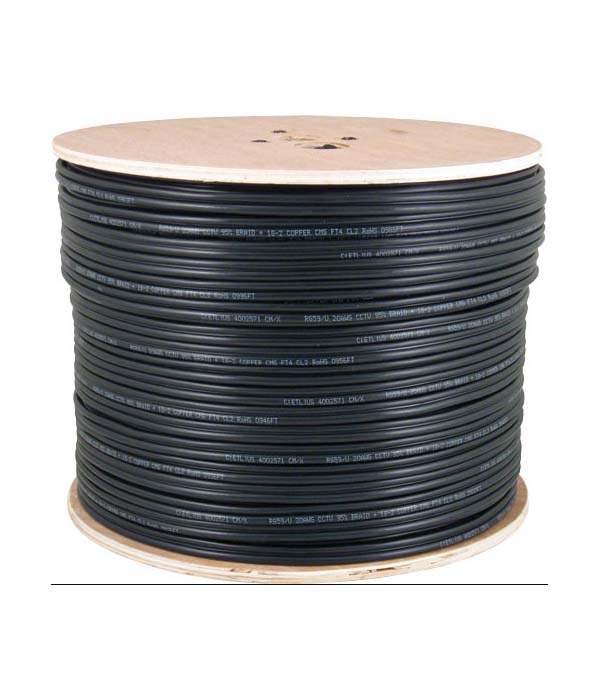

• Packaging: Comes in a sturdy pull-out box for convenient storage and deployment

Features

• High-Speed Performance: The Cat6 specification of the cable allows for high-speed data transmission, supporting bandwidths of up to 550MHz. This enables fast and reliable connectivity for various applications, including streaming, online gaming, and data-intensive tasks.
• Enhanced Signal Quality: The solid copper conductors and cross-shaped center spline design help minimize crosstalk and signal interference, ensuring clear and reliable signal transmission. This results in improved signal quality and reduced data errors or packet loss.
• Durability and Longevity: The PVC jacket provides protection against external factors such as physical damage, moisture, and abrasion. It enhances the cable’s durability, making it suitable for long-term use in both indoor and outdoor installations.
• Easy Cable Management: The cable comes in a sturdy pull-out box, allowing for easy and organized deployment. The sequential footage markings on the jacket help with accurate measurement and efficient cable management during installation.
• Versatile Applications: The Cat6 standard makes this cable suitable for a wide range of applications, including Ethernet networking, VoIP (Voice over Internet Protocol) systems, IP cameras, and more. It provides a reliable and high-performance connection for various devices and equipment.
• Backward Compatibility: The cable is backward compatible with Cat5e and lower category cables. This means it can be used in existing network infrastructure without the need for extensive upgrades or replacements.
• Easy Termination: The cable is designed for easy termination and can be used with RJ-45 connectors, commonly used in Ethernet connections. This simplifies the installation process and ensures compatibility with standard networking equipment.
• Reliable Performance: The cable meets ANSI/TIA-568-C.2 standards for enhanced performance and reliability. It undergoes rigorous testing to ensure consistent and dependable performance, providing peace of mind for your network connectivity.
• Suitable for Indoor and Outdoor Use: The durable construction and PVC jacket make this cable suitable for both indoor and outdoor installations. It can withstand various environmental conditions, making it versatile for different networking setups.
• Cost-Effective Solution: The 1000ft length of the cable offers ample coverage for large-scale networking projects, reducing the need for additional splicing or extensions. This can result in cost savings and efficient deployment of network infrastructure.
