Von Duprin 230L-03-28-RHR 230L Lever Trim – 03 Lever

Von Duprin 230L-03-28-RHR 230L Lever Trim – 03 Lever

Description:

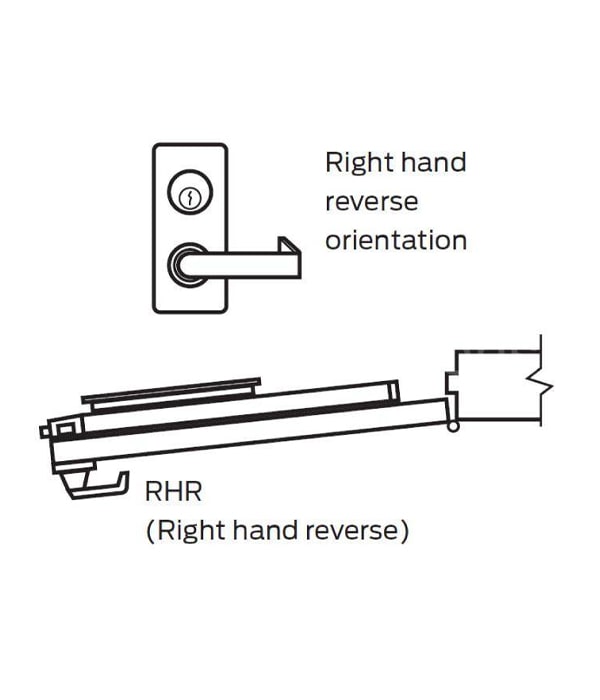

The 230L has a cast zinc 3/4″ (19mm) depth escutcheon. #06 lever style furnished standard, #03 and #17 optional style levers are available. 230L furnished RHR if handing is not specified. Cylinder must be ordered separately for the 230NL, 230TP and 230L trims.

Specifications:

• Trim description:
  230L*
• Escutcheon plate size:
  3″ x 6 3/8″ x 15/16″
  (76 x 162 x 24 mm)
• Projection:
  2 5/8″
  (67 mm)
• ANSI function:
  08
• Cylinder type:
  1 1/4″ Mortise
• Optional trim:
  Optional #425 sex bolt quantity for device
• *ANSI/BHMA A156.3 (2008) Grade 1 trim
