Von Duprin 230L-06-28-RHR 230L Lever Trim – 06 Lever

Von Duprin 230L-06-28-RHR 230L Lever Trim – 06 Lever

Description:

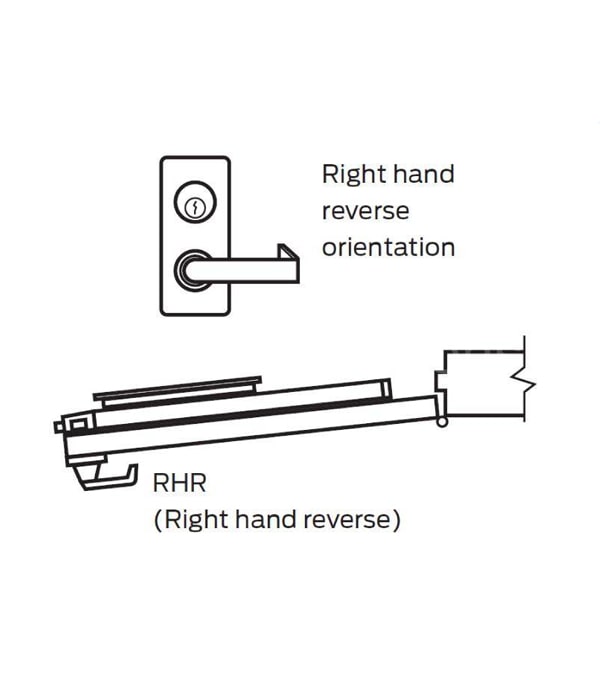

The 230L has a cast zinc 3/4″ (19mm) depth escutcheon. #06 lever style furnished standard, #03 and #17 optional style levers are available. 230L furnished RHR if handing is not specified. Cylinder must be ordered separately for the 230NL, 230TP and 230L trims.

Features:

• Key locks/unlocks lever
• 06 Lever Style

Specifications:

• Escutcheon plate size:
  3″ x 6 3/8″ x 15/16″ (76mm x 162mm x 24 mm)
• Cylinder:
  1 1/4″ Mortise (Not Included)

Finishes:

• SP28 – Sprayed Aluminum
• SP313 – Dark Bronze
