Von Duprin 3527A-EO-3FT-313 (EA/1) 35A Series Surface Vertical Rod Exit Device

Von Duprin 3527A-EO-3FT-313 (EA/1) 35A Series Surface Vertical Rod Exit Device

Description:

3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 ? 2008 Grade 1. The 3527A has a smooth mechanism case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used.

3527A fits door stiles as narrow as 1 3/4″ (44mm). Newly designed device has a one piece center case cover.

Features:

• • • • Finishes:
        US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
      • Device lengths:
        2′ – 2′ (610 mm) Door size
        3′ – 2’4″ to 3′ (660mm to 914 mm) door size
        4′ – 2’8″ to 4′ (813 mm to 1219 mm) door size
      • Device centerline from finished floor:
        39 13/16″ (1006mm)
      • Center case dimensions:
        8 13/16″ x 2 13/32″ x 1 9/16″
        (208mm x 62mm x 40mm)
      • Mechanism case dimensions:
        2 1/4″ x 2 1/4″
        (57mm x 57mm)
      • Projection:
        Pushbar neutral 3 13/16″ (97 mm)
        Pushbar depressed 3 1/16″ (78 mm)

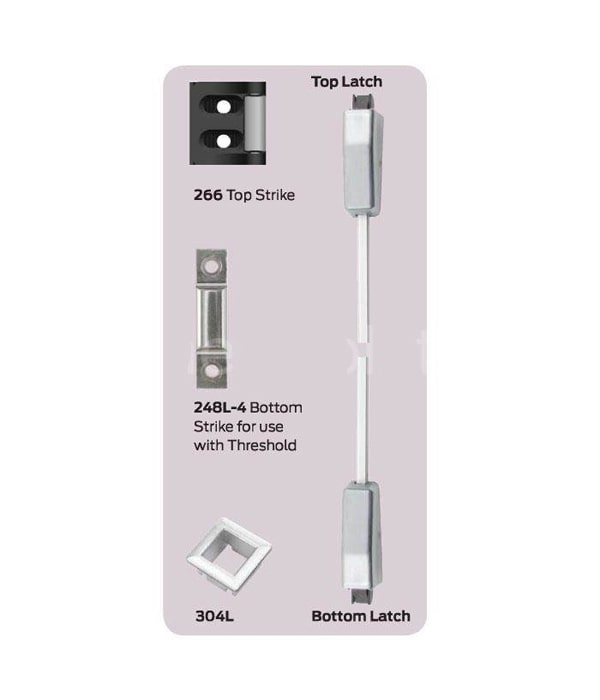

      • Latch bolt:
        Deadlocking anti-friction top & bottom bolt 5/8″ (16mm) throw
      • Door undercut:
        1/4″ (7mm)

    4 1/2″ x 2 1/8″ x 1 1/2″
    (114mm x 54mm x 38mm)

• Vertical rods:
  1/2″ square tubing, standard rods accommodate 7′ (2134mm) door
  Top rod length is 34 15/16″ (887mm)
  Bottom rod length is 31 1/4″ (794mm)
  Extension rods available 1′ (205mm) or 3′ (914mm) for doors over 7′
  One piece top rod available for 8′ (2438mm) -10′ (3048mm) door
• Fasteners & sex bolts (SNB):
  Includes 1 3/4″ (44mm) ? 2 1/4″ (57mm) wood & metal doors
  #425 SNB furnished standard for end case
  #325 SNB furnished standard for EO (exit only device)
  #325 SNB furnished for top and bottom latches
