Von Duprin 990TP-BE-R/V-26D 990TP-BE Thumbpiece Blank Escutheon for Rim/Vertical

Von Duprin 990TP-BE-R/V-26D 990TP-BE Thumbpiece Blank Escutheon for Rim/Vertical

Description:

98/99 Rim Exit Device Trim

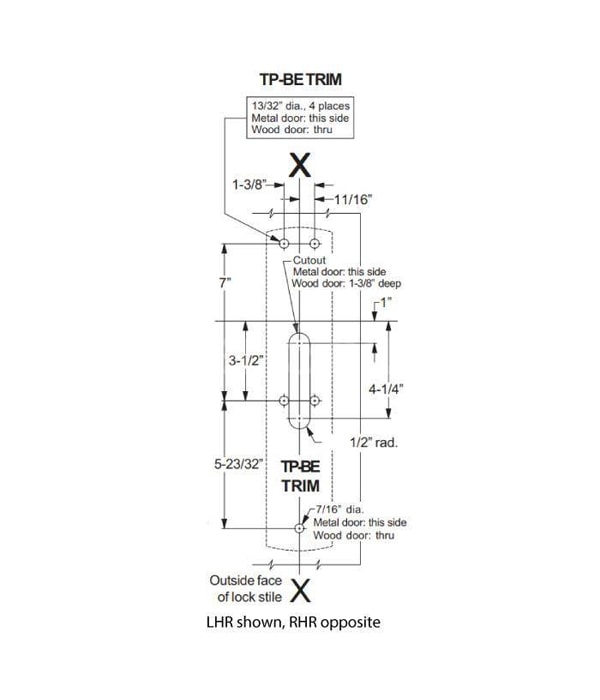

Specifications:

• Trim description:
  990TP-BE
• Escutcheon plate size:
  3″ x 143/16″ x 3/32″
  (76 x 360 x 2 mm)
• Pull center to center:
  5 1/2″
  (140 mm)
• Projection:
  2″
  (51 mm)
• ANSI function:
  15
• #425 SNB optional- HMD req. WD w/o SLM pkg.:
  2
• #825 SNB req. WD w/o SLM pkg F Rim device ONLY:
  2
• #425 SNB req. w/499F:
  2
