Von Duprin 990TP-R/V-10 990TP Thumbpiece for Rim/Vertical

Von Duprin 990TP-R/V-10 990TP Thumbpiece for Rim/Vertical

Description:

98/99 Rim Exit Device Trim

Specifications:

• • Trim description:
    990TP

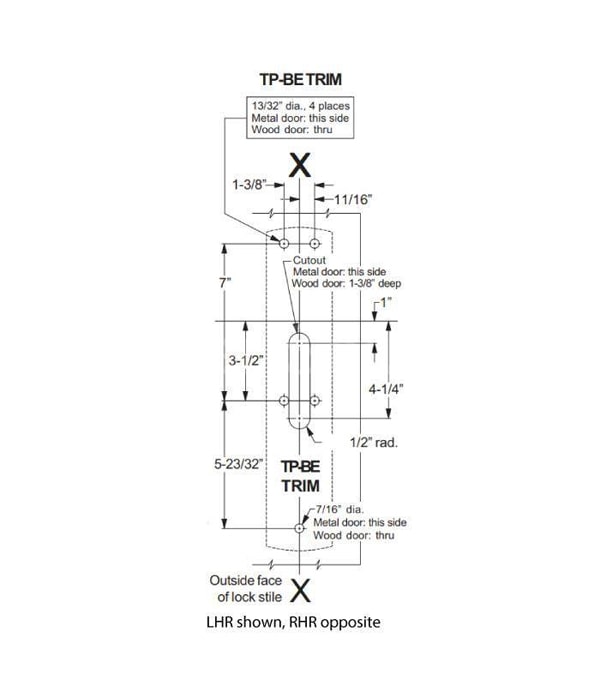

  • Escutcheon plate size:
    3″ x 143/16″ x 3/32″
    (76 x 360 x 2 mm)
  • Pull center to center:
    5 1/2″
    (140 mm)
  • Projection:
    2″
    (51 mm)
  • ANSI function:
    05
  • Rim or vertical rod device:
    Rim
  • Mortise lock device:
    1 1/4″ Mortise
  • #425 SNB optional- HMD req. WD w/o SLM pkg:
    2
  • #825 SNB req. WD w/o SLM pkg F Rim device ONLY:
    2
  • #425 SNB req. w/499F:
    2
