Yale Commercial 353-626-LC 350 Series Mortise Deadlock
626 Satin Chrome, Single Cylinder Outside, Less Cylinder
Specifications

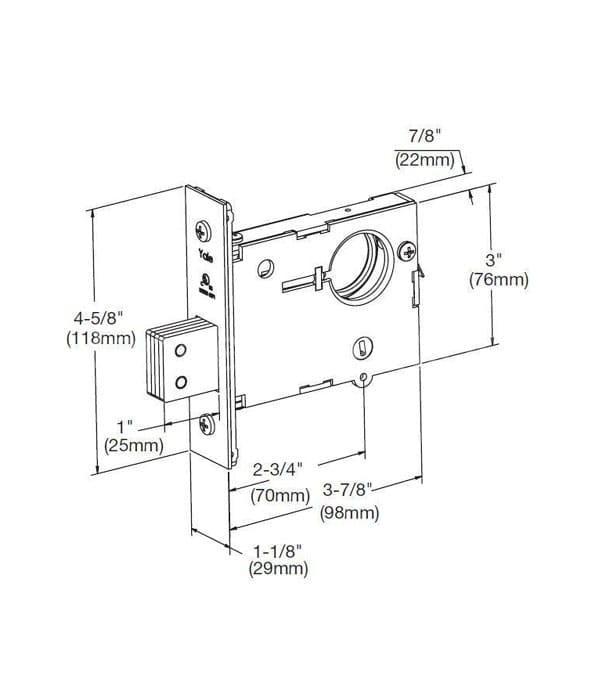

- Backset: 2-3/4 Inch
- Cylinder Type: Conventional Cylinder
- Finish: 626/US26D-Satin Chrome
- Finish Description: Satin Chrome

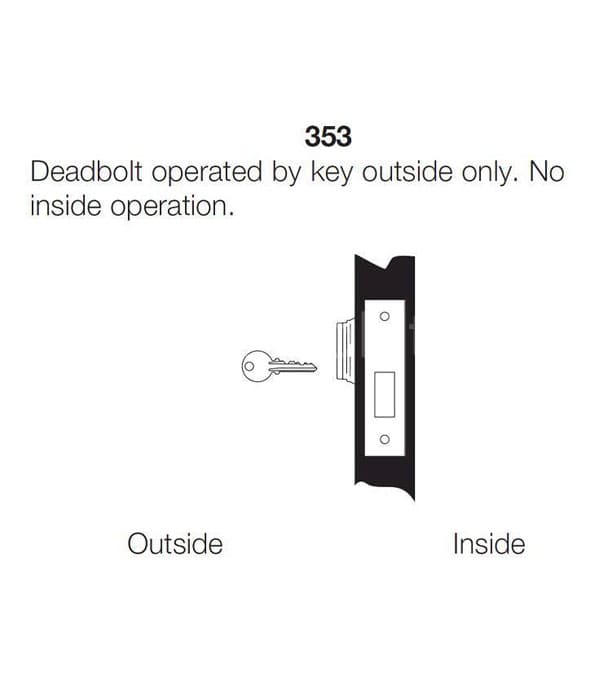

- Function: 353-Single Cylinder
- Grade: ANSI/BHMA Grade 1
- Keyblank Grouping: YALE-PARA-6-1
- Keying Charges: CCAM
- Keyway: Yale PARA (E1R)
- Manufacturer: Yale Commercial
- Product Type: Auxiliary Lock
- Series: 350 Series
- Strike: Deadbolt, 1-1/8″ x 3-1/2″, Square Corner
- UPC: 049306221863
Fire Listings
- 350 series deadlocks, when used in conjunction with the primary latching device, are UL – cUL listed for use on fire doors having a rating up to and including 3 hours. In addition, the 350 series are cUL listed for use on wood doors having a rating up to and including 90 minutes.
- Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
