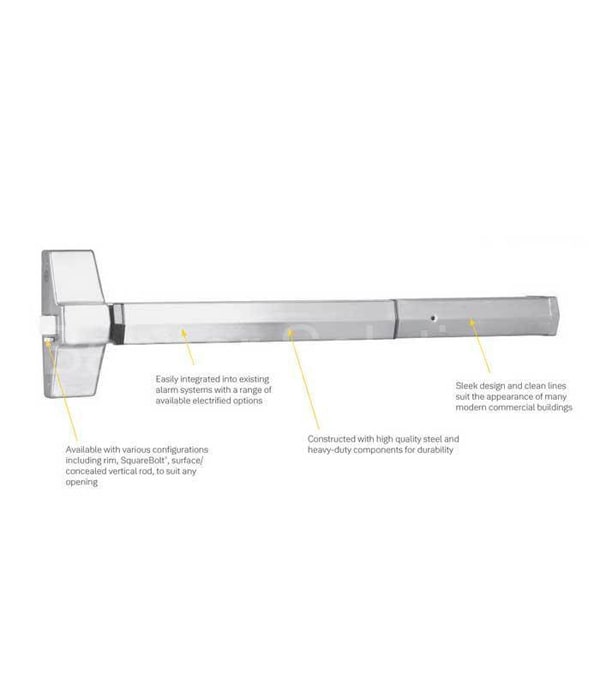

Yale Commercial 7120F-36-613E-RHR 7120 Fire Rated Concealed Vertical Rod Exit Device
Description:
The 7120 is a concealed vertical rod exit device to be used on metal doors only up to 8′ (fire) and 10′ (panic) where two-point latching is desired.
Features:
- Designed for wide stile and flush doors
- Handed. Specify hand (field reversible)
- Bottom deadbolt for secure latching
- Fully adjustable roller strike
Applications:
- Pairs of doors
- Double egress
- Metal doors only
Specifications:
- Door Opening Width:
24 for 24″ (60cm) doors
36 for 30″ – 36″ (76cm – 91cm) doors
48 for 36″ – 48″ (91cm – 122cm) doors - Door Opening Height:
Standard door height adjustable to 8′ (244cm), with the device centerline at 39-15/16″ (101cm) from floor. - Door Thickness:
1-3/4″ (44mm) standard - Minimum Stile Width:
4-1/2″ (114mm) - Projection:
3-1/4″ (83mm) active, 2-3/4″ (70mm) dogged - Latchbolt:
Top: 3/4″ (19mm) throw, pullman-type with automatic deadlatching
Bottom: 5/8″ (16mm) throw deadbolt, held retracted during door swing - Vertical Rods:
1/2″ (13mm) O.D. telescoping tubular rods - Strike:
Top: Roller type 791 (panic and fire).
Bottom: Flush mounted 790 (panic and fire). - Fasteners:
Machine screws standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. - Trims:
620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim. - ANSI/BHMA:
Certified A156.3 Type 8, Grade 1 - UL/cUL:
FVSR/FVSR7 – Panic hardware - Dogging:
Hex key dogging supplied standard on panic devices - Warranty:
5-year limited
Finishes:
- 605:
Bright Brass, Clear Coated - 606:
Satin Brass, Blackened, Satin Relieved, Clear Coated - 611:
Bright Bronze, Clear Coated - 612:
Satin Bronze, Clear Coated - 613E:
Dark Oxidized Satin Bronze – equivalent - 616:
Blackened, and Satin Relieved, Clear Coated - 619:
Satin Nickel Plated, Clear Coated - 620:
Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated - 629:
Bright Stainless Steel - 630*:
Satin Stainless Steel - 693:
Black Painted - BSP:
Black Suede Powder Coat - WSP:
White Suede Powder Coat
