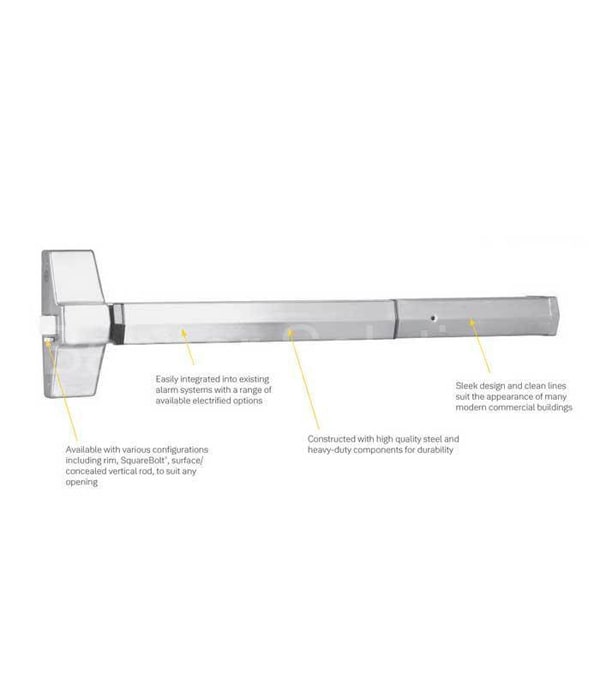

Yale Commercial 7120F-36-630-RHR 7120 Fire Rated Concealed Vertical Rod Exit Device

Yale Commercial 7120F-36-630-RHR 7120 Fire Rated Concealed Vertical Rod Exit Device

Description:

The 7120 is a concealed vertical rod exit device to be used on metal doors only up to 8′ (fire) and 10′ (panic) where two-point latching is desired.

Features:

• Designed for wide stile and flush doors
• Handed. Specify hand (field reversible)
• Bottom deadbolt for secure latching
• Fully adjustable roller strike

Applications:

• Pairs of doors
• Double egress
• Metal doors only

Specifications:

• Door Opening Width:
  24 for 24″ (60cm) doors
  36 for 30″ – 36″ (76cm – 91cm) doors
  48 for 36″ – 48″ (91cm – 122cm) doors
• Door Opening Height:
  Standard door height adjustable to 8′ (244cm), with the device centerline at 39-15/16″ (101cm) from floor.
• Door Thickness:
  1-3/4″ (44mm) standard
• Minimum Stile Width:
  4-1/2″ (114mm)
• Projection:
  3-1/4″ (83mm) active, 2-3/4″ (70mm) dogged
• Latchbolt:
  Top: 3/4″ (19mm) throw, pullman-type with automatic deadlatching
  Bottom: 5/8″ (16mm) throw deadbolt, held retracted during door swing
• Vertical Rods:
  1/2″ (13mm) O.D. telescoping tubular rods
• Strike:
  Top: Roller type 791 (panic and fire).
  Bottom: Flush mounted 790 (panic and fire).
• Fasteners:
  Machine screws standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
• Trims:
  620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.
• ANSI/BHMA:
  Certified A156.3 Type 8, Grade 1
• UL/cUL:
  FVSR/FVSR7 – Panic hardware
• Dogging:
  Hex key dogging supplied standard on panic devices
• Warranty:
  5-year limited

Finishes:

• 605:
  Bright Brass, Clear Coated
• 606:
  Satin Brass, Blackened, Satin Relieved, Clear Coated
• 611:
  Bright Bronze, Clear Coated
• 612:
  Satin Bronze, Clear Coated
• 613E:
  Dark Oxidized Satin Bronze – equivalent
• 616:
  Blackened, and Satin Relieved, Clear Coated
• 619:
  Satin Nickel Plated, Clear Coated
• 620:
  Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
• 629:
  Bright Stainless Steel
• 630*:
  Satin Stainless Steel
• 693:
  Black Painted
• BSP:
  Black Suede Powder Coat
• WSP:
  White Suede Powder Coat
