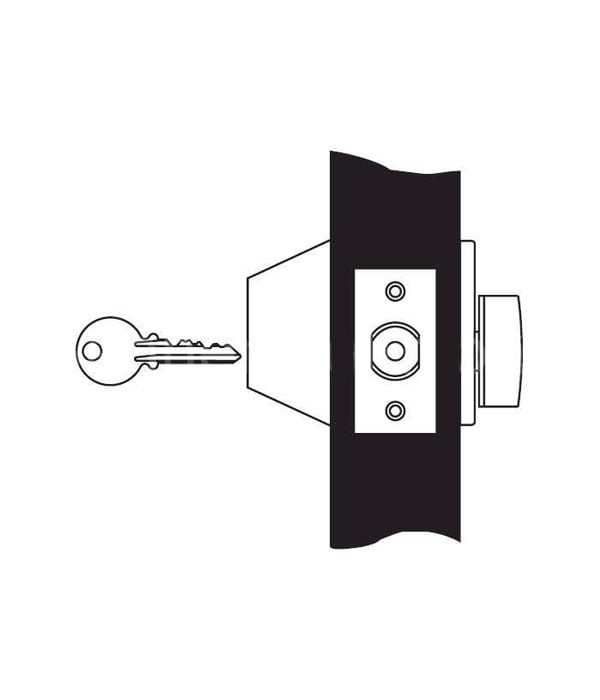

Yale Commercial D212-605 D200 Series Deadbolt Grade 2
Cylinder by Thumbturn, PARA-E1R Keyway, 2-3/4″, 605 Bright Brass, Keyed Random
Specifications
- Backset: 2-3/4 Inch
- Cylinder Type: Conventional Cylinder
- Finish: 605/US3-Bright Polished Brass
- Finish Description: Bright Polished Brass
- Function: 1-Cylinder x Thumbturn Deadbolt
- Grade: ANSI/BHMA Grade 2
- Keyblank Grouping: YALE-PARA-6-1
- Keying Charges: CCAM
- Keyway: Yale PARA (E1R)
- Manufacturer: Yale Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: D2 Series
- Strike: Deadbolt, 1-1/8″ x 2-3/4″, Square Corner
Fire Listings
- D series deadbolts, when used in conjunction with the primary latching device, are UL – cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
- Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
